2010年 Jamis CODA
(ジェイミス クロスバイク コーダ)

2011年Jamis クロスバイク ツーリングバイクはこちら

こちらの商品は通販が出来ます。

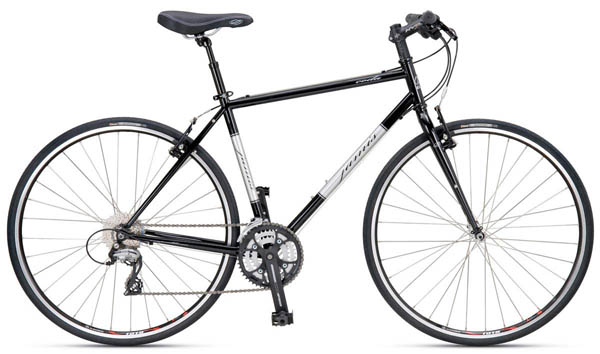

CODA
(コーダ)

定価¥65,000
レイノルズ520クロモリフレーム+クロモリフォーク
カラー/グロスブラック/マシンシルバー
サイズ/15、17、19、21、23インチ

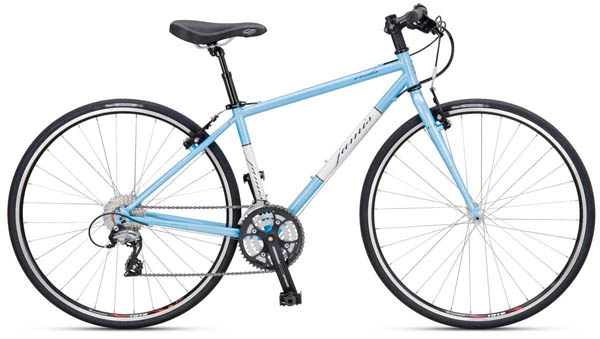

CODA Compact fit
(コーダコンパクトフィット)

定価¥65,000
レイノルズ520クロモリフレーム+クロモリフォーク
カラー/セレリー/パールホワイト
サイズ/14、16、18インチ

メール、お問い合わせはこちらまで

ご注文、ご質問に便利な注文フォームをご用意しました。

実車の写真(写真は2009年モデル)

使いやすい48-38-28Tのクランクギヤ
フロントフォークはもちろんクロモリ
使いやすいフラットバーハンドル
ワイドレンジな8速スプロケット
座りやすい幅広サドル&シートポストサスペンション
高めのステムセッティングも可能です。
良く効くVブレーキ

Jamis CODA

この価格でクロモリのクロスバイクが手に入りその「スポーツ自転車本来の乗り心地」を手軽に楽しむ事が出来る普及機。

どの機種にもサスペンションシートポストが付いていますのでクロモリでフレーム自体で細かい路面の振動を吸収してシートポストサスペンションで下からの突き上げを吸収しているのでより乗った感じは心地よくなります。ハンドルステムも角度を可変出来るものが付いていますのでステムを交換しなくても乗り手に合わせたポジションを簡単に微調整する事が出来ます。
また、この機種には女性用モデルが用意されていますので身長の小さい方も乗る事の出来るサイズがあります。

サイズ CODA

Size Center of
BB to Top
of TT
EFF TT
Length
Head
Tube
Angle
Seat
Tube
Angle
Chianstay Wheelbase Fork
Rake
BB Height Headtube Standover
15 385 545 71 74 435 1035 50 285 105 723
17 428 560 71 74 435 1051 50 285 120 750
19 473 570 72 73.5 435 1047 50 285 135 785
21 523 585 72 73.5 435 1063 50 285 150 817
23 561 595 72 73.5 435 1073 50 285 165 844

サイズ CODA Compact fit

Size Center of
BB to Top
of TT
EFF TT
Length
Head
Tube
Angle
Seat
Tube
Angle
Chianstay Wheelbase Fork
Rake
BB Height Headtube Standover
14 347 520 70 75 435 1028 50 285 95 696
16 385 530 71 75 435 1030 50 285 105 725
18 422 540 71 74 435 1031 50 285 120 750

スペック

FRAME Reynolds 520 double-butted chromoly main tubes, extended head tube with reinforced collars, double tapered cromo stays, forged dropouts with eyelets
FORK Chromoly unicrown, bulge butted steerer, low-rider carrier braze-ons, forged dropouts with double eyelets
HEADSET Ritchey LB Aheadset, 1 1/8”
WHEELSET Alex iD-19 alloy double-wall rims, 32h, formula sealed alloy QR hubs, 14g stainless steel spokes
TIRES Vittoria zaffiro, 700 x 28c
DERAILLEURS Shimano Acera M360 rear and C-102 bottom pull front
SHIFTERS Shimano Acera M360 Rapidfire Plus SL, 24-speed
CHAIN KMC Z72
FREEWHEEL Shimano CS-HG40, 8-speed,11-32T
CRANKSET FSA Dyna Drive alloy, 48/38/28T, 170mm (15-17”), 175mm (19-23”).170mm (14-18”)
BOTTOM BRACKET FSA sealed cartridge, 68 x 110mm
PEDALS Platform style, steel cage/resin body
BRAKESET Tektro direct pull brakes with front power modulator and Tektro alloy levers
HANDLEBAR Jamis flat bar, 6061 T-6 alloy, 10° bend x 580mm
STEM Nvo Components adjustable threadless system (ATS) aluminum stem, TM-3, 90mm (15”), 105mm (17-19”), 115mm (21-23”) 90mm (14-16”), 105mm (18”)
GRIPS Dual Compound trekking
SEATPOST Suspension, 45mm travel, 350mm x 27.2mm (260mm on 15”) , alloy clamp with QR seatpin
SADDLE Jamis Touring with SL top and satin steel rails
Jamis Touring femme with SL top and satin steel rails
SIZES 15”, 17”, 19”, 21”, 23”
14”, 16”, 18”
WEIGHT 11.93
