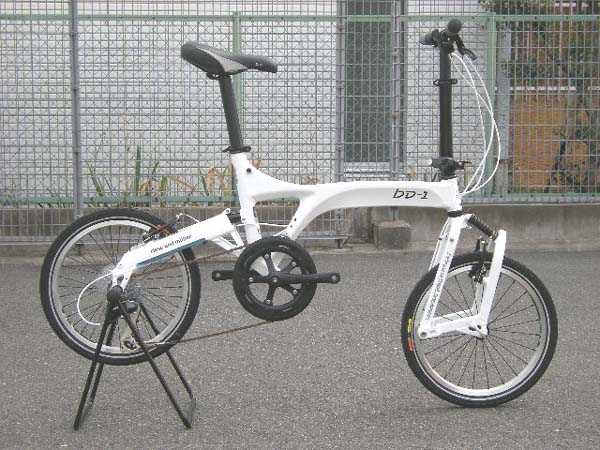

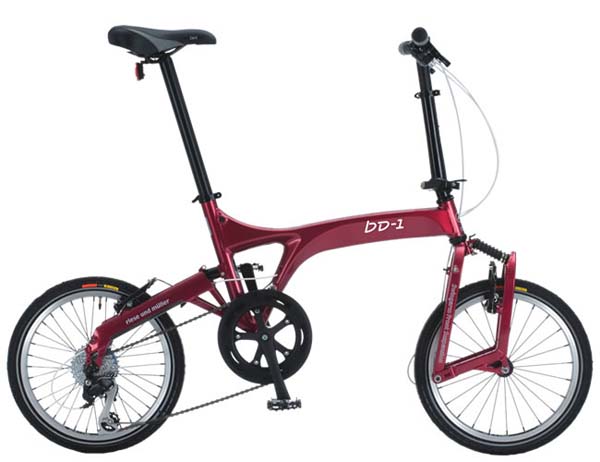

BD-1 Compact |
| FRAME |
Alu foldingMonocoque frame, w/black elastomer suspension, rear dropout 135mm, special droput |
| FORK |
Alu folding fork with black spring suspension w/side carrier eye-let |
| HEADSETS |
1-1/8" w/ alloy top cap and 22.2mm star nut + 2mm spacer |
| BB PARTS |
68/110mm |
| SEAT POST |
34.9×2.3t×570mm hard anodized AL7075 w/laser scale |
| SEAT CLAMP |
ID:40mm |
| TIRE/F |
18*1.5 90PSI 60 TPI kevler inside w/reflector sidewalls |
| TIRE/R |
18*1.5 90PSI 60 TPI kevler inside w/reflector sidewalls |
| TUBE |
18*1.5" FV |
| RIM TAPE |
Strip rim tape |
| RIM/F |
18*1.5" 24H w/CNC side wall |
| RIM/R |
18*1.5" 36H w/CNC side wall |
| SPOKE |
2.0mm 14G stainless black, w/black nipple |
| HUB/F |
24H old:100mm black,sealed bearing, alloy axle,silver A:109mm |
| HUB/R |
Rear freehub Alivio FH-MC18 8speed QR type 36H OLD : 135mm QR(silver) : 168mm |

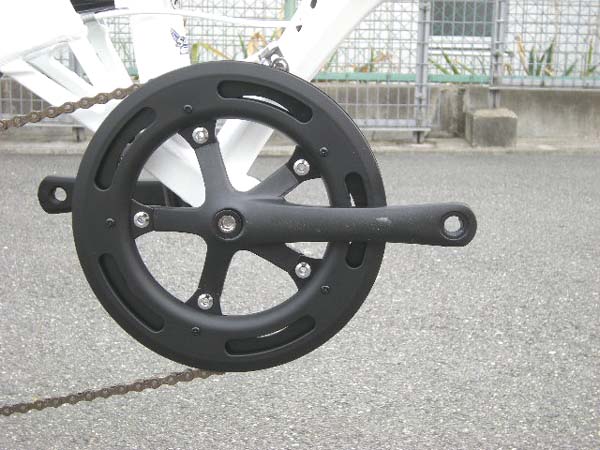

| CHAIN WHEEL |
54T chainring 160mm crank set |
| CHAIN COVER |
Double chain cover for 54T chainning |
| CHAIN |
114Links |
| FREEWHEEL |
Cassette sprocket CS-HG50-I 8speed Shimano logo 11-30T, w/LS-402 spoke protector |
| DERAILLEUR/R |
RD-M410-L Alivei SGS 7/8speed direct attachment |
| SHIFTER/R |
SL-M410 Alivio right 8speed 2050mm inner w/optical gear display |
| SHIFTER CABLES |
4mm shifter housing 1230mm/580mm |

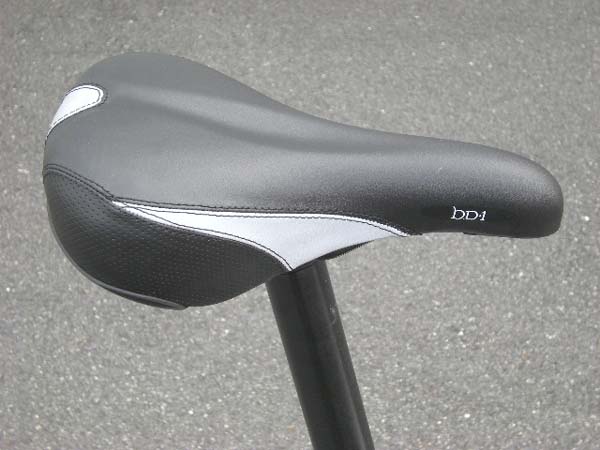

| SADDLE |
V33.99 Black/2.v30.99 black/3.3M reflector/4.3M reflector, C6-19 black stitching, black bumper, steel black w/laser scale rails, w/o clamp, w/2009 bd-1 logo white |
| PEDAL |
Barrel polished alloy body, ED black alloy cage, CNC machined Cro-mo axle |

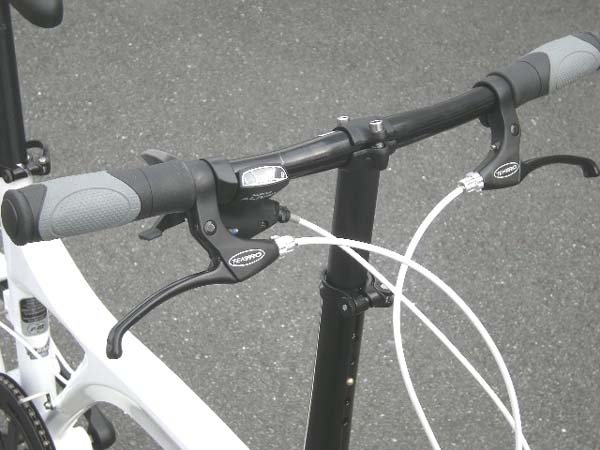

| HANDLE BAR |
520mm |

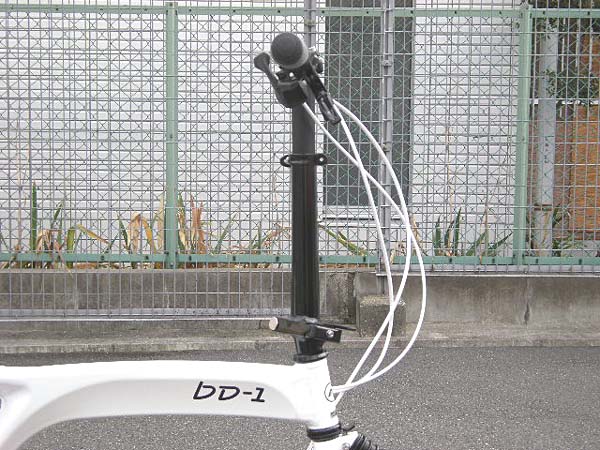

| STEM |
Folding adjustable index stem w/new hinge, 10degree |
| GRIP |
Kraton black/Gel gray+plug 125mm |
| BRAKE/F |
V-Brake Melt forged alloy arms, length : 102mm, linear spring, w/827.2 shoes w/Tektro#875.1 lead pipe |

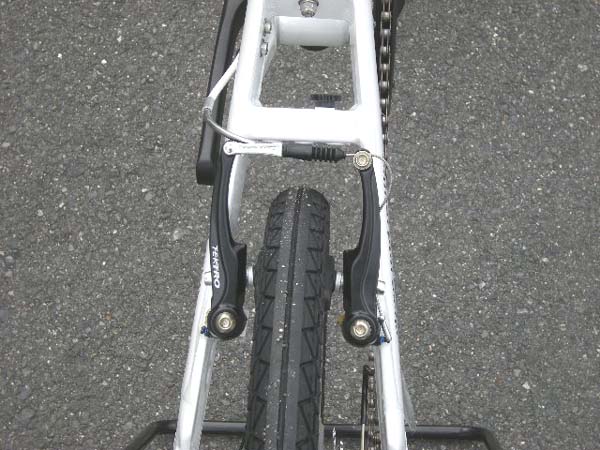

| BRAKE/R |
V-Brake Melt forged alloy arms, length : 102mm, linear spring, w/827.2 shoes w/90degree pipe |
| BRAKE LEVER/R |
Cast aluminum bracket for use with V-brake and repidfire shifter, 3finger design, black bracket/barrel lever |
| BRAKE LEVER/L |
Cast aluminum bracket for use with V-brake and repidfire shifter, 3finger design, black bracket/barrel lever |
| BRAKE CABLE |
Brake cable housing 5×1300mm w/stainless slick inner wire 1710mm |
| REF.&BRACKET |
Rear reflectorRR-160-BTR w/B10 bracket |
| LIGHT/F |
White LED light, 3 white LEDS, double functions, w/25.4 bracket on handlebar, w/o battery |
| LIGHT/R |
All sight rear safety light, 3LEDs, 4Modes, w/o battery |
| BELL |
Alloy dome with one piece plastic base 22.2mm, w/o Tranz X logo |
| BRACKET |
Adjustable bracket for rear light |
| SPOKE PROTECTOR |
w/LS-402 spoke protector |
