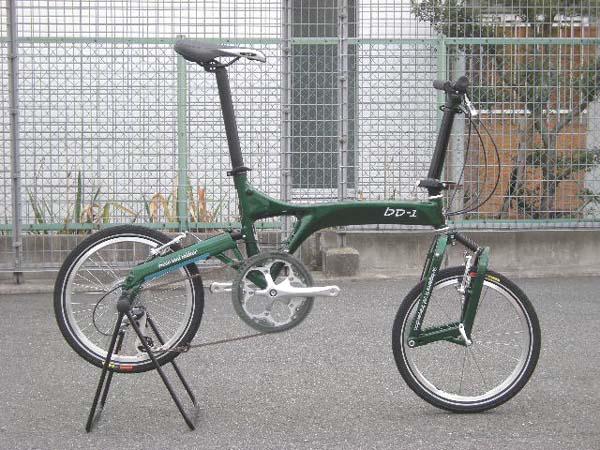

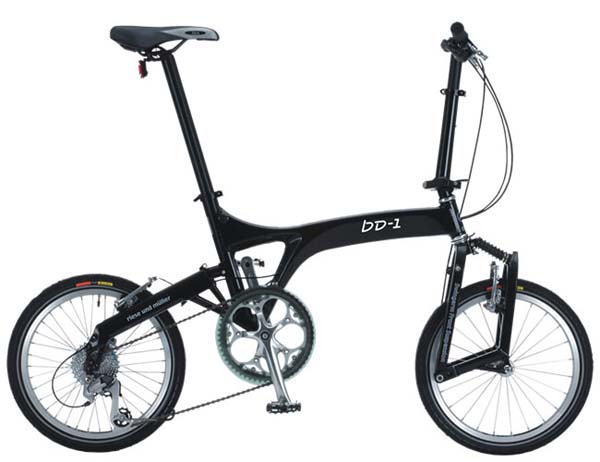

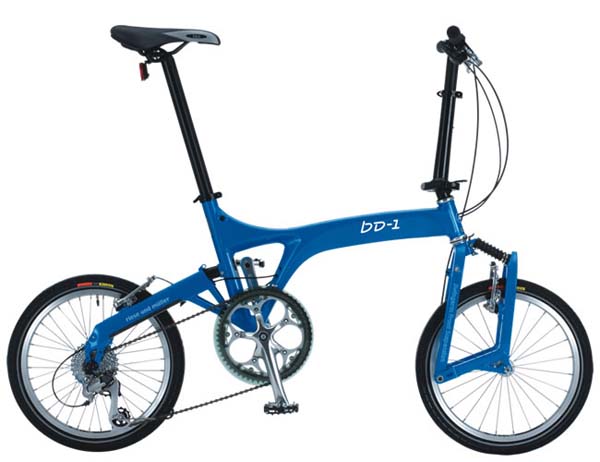

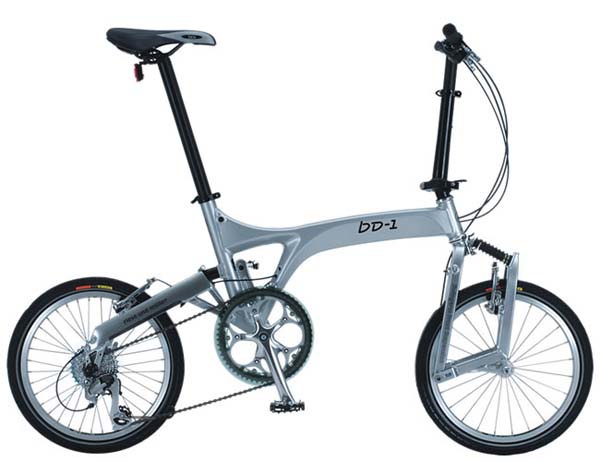

BD-1 8SPEED |

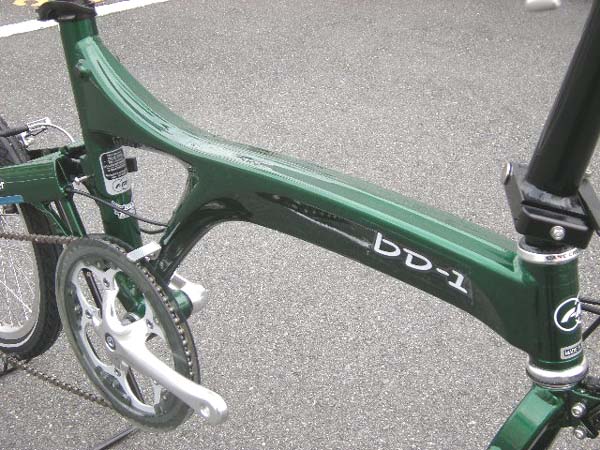

| FRAME |
Alu foldingMonocoque frame, w/black elastomer suspension, rear dropout 135mm, special droput |

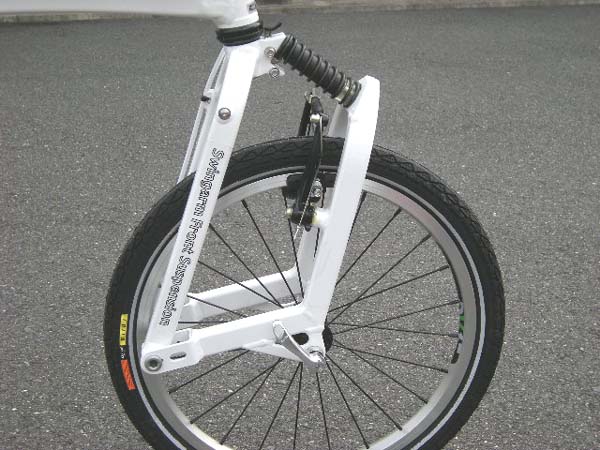

| FORK |
Alu folding fork with black spring suspension w/side carrier eye-let |
| HEADSETS |
1-1/8" w/AL-TA3 top cap and 22.2mm star nut + 2mm spacer |
| BB PARTS |
68/113mm |
| SEAT POST |
34.9×2.3t×570mm hard anodized AL7075 w/laser scale |
| SEAT CLAMP |
ID:40mm |
| TIRE/F |
18*1.5 90PSI 60 TPI kevler inside w/reflector sidewalls |
| TIRE/R |
18*1.5 90PSI 60 TPI kevler inside w/reflector sidewalls |
| TUBE |
18*1.5" FV |
| RIM TAPE |
Strip rim tape |
| RIM/F |
18*1.5" 24H w/CNC side wall+indicator |
| RIM/R |
18*1.5" 36H w/CNC side wall+indicator |
| SPOKE |
2.0mm 14G stainless |
| HUB/F |
24H old:100mm silver,sealed bearing, alloy axle,silver A:109mm |
| HUB/R |
FH-RM30 silver 8speed QR type(silver: 170mm)36H, old:135mm, axle:146mm |

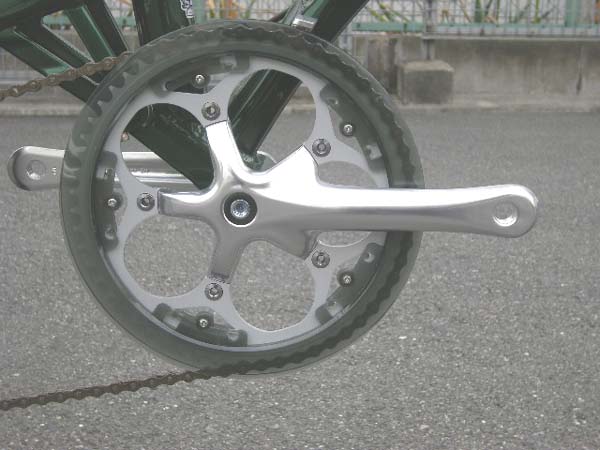

| CHAIN WHEEL |
56T chainring 170mm length |
| CHAIN COVER |
Double chain cover for 56T chainning |
| CHAIN |
112Links |
| FREEWHEEL |
Cassette sprocket CS-HG50-I 8speed Shimano logo 11-30T |

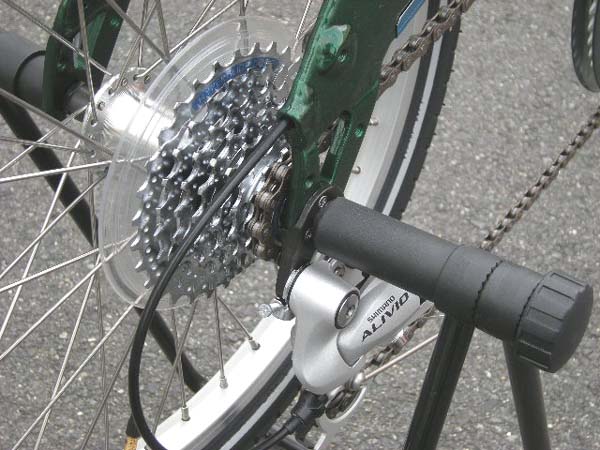

| DERAILLEUR/R |
RD-M410-S-SGS 7/8speed direct attachment |
| SHIFTER/R |
SL-M410 right 8speed 2050mm inner |
| SHIFTER CABLES |
Outer casing OT-41SP sealed 1200mm/580mm, 6X 6mm cap |

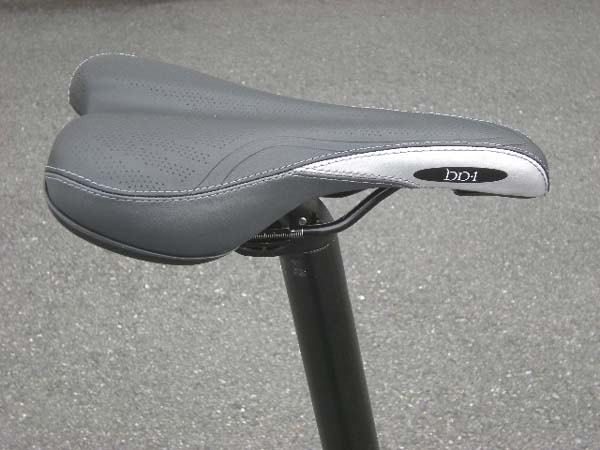

| SADDLE |
V1799Black+V1750 gray+V17.97 silver, w/Embossed spot, C5-07gray stitching,black bumper, steel black w/laser scale rails, w/o clamp, |
| PEDAL |
Barrel polished alloy body, ED black alloy cage, CNC machined Cro-mo axle |

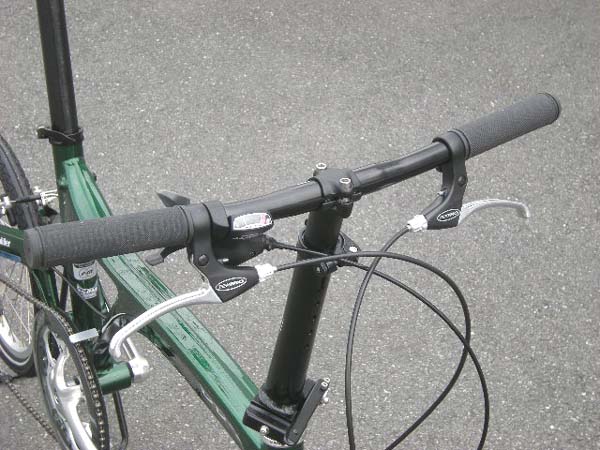

| HANDLE BAR |
520mm |

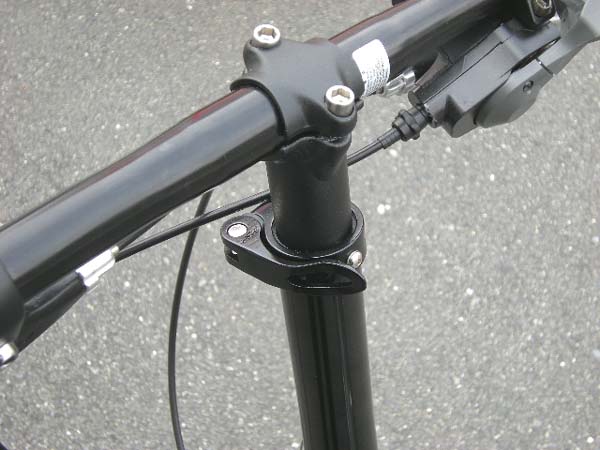

| STEM |
Folding adjustable index stem w/new hinge, 25degree |
| GRIP |
Kraton 130mm |
| BRAKE/F |
V-Brake Melt forged alloy arms, length : 102mm, linear spring, w/827.2 shoes w/Tektro#875.1 lead pipe |
| BRAKE/R |
V-Brake Melt forged alloy arms, length : 102mm, linear spring, w/827.2 shoes w/90degree pipe |
| BRAKE LEVER/R |
Cast aluminum bracket for use with V-brake and repidfire shifter, 3finger design, black bracket/barrel lever |
| BRAKE LEVER/L |
Cast aluminum bracket for use with V-brake and repidfire shifter, 3finger design, black bracket/barrel lever |
| BRAKE CABLE |
Brake cable Shimano T-type DIA:1.6×5.0mm, stainless inner wire 1400×1600mm |
| REF.&BRACKET |
Rear reflectorRR-160-BTR w/B10 bracket |
| LIGHT/F |
White LED light, 3 white LEDS, double functions, w/25.4 bracket on handlebar, w/o battery |
| LIGHT/R |
All sight rear safety light, 3LEDs, 4Modes, w/o battery |
| BELL |
Alloy dome with one piece plastic base 22.2mm |
| BRACKET |
Adjustable bracket for rear light |
| SPOKE PROTECTOR |
w/LS-402 spoke protector |
