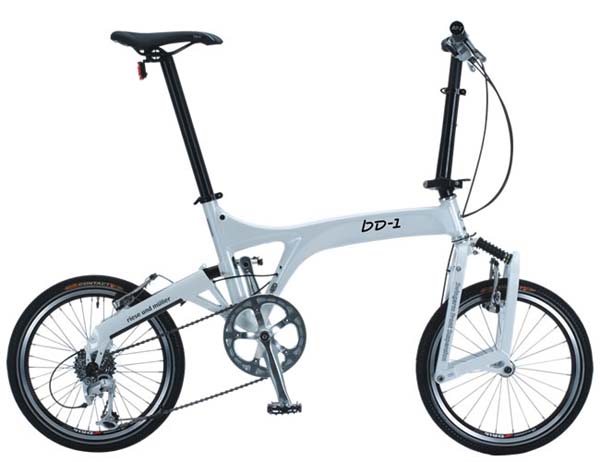

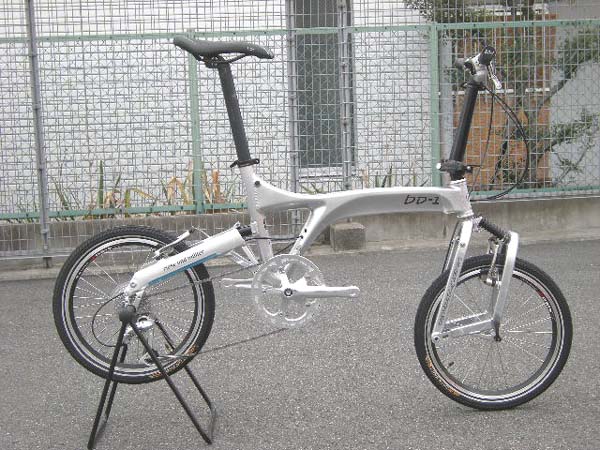

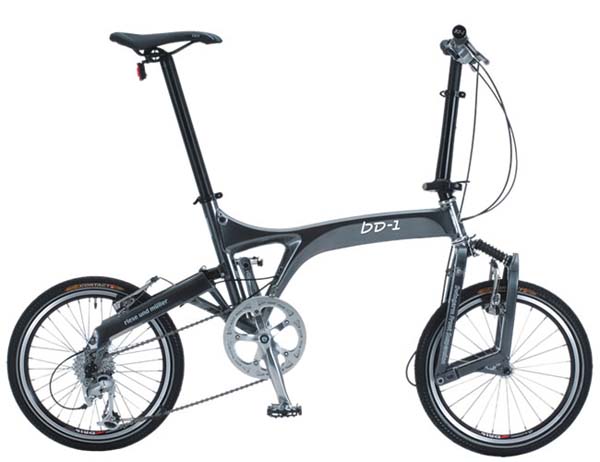

BD-1 9SPEED |

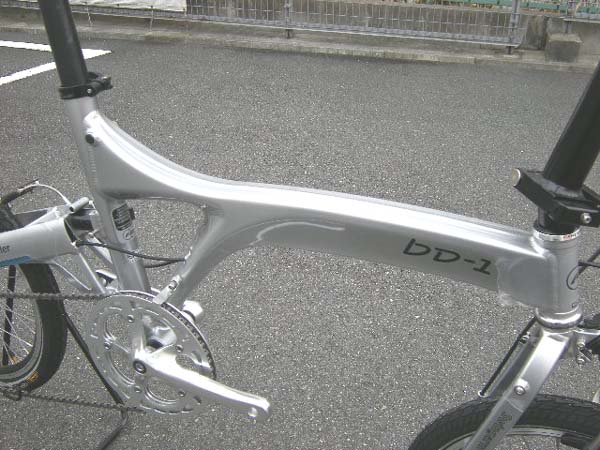

| FRAME |
Alu foldingMonocoque frame, w/black elastomer suspension, rear dropout 135mm, special droput |

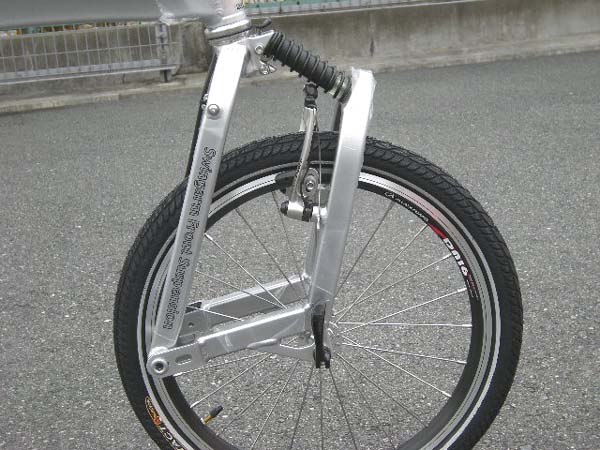

| FORK |
Alu folding fork with black spring suspension w/side carrier eye-let |
| HEADSETS |
1-1/8" w/ alloy top cap and 22.2mm star nut + 2mm spacer |
| BB PARTS |
68/122mm |
| SEAT POST |
34.9×2.3t×570mm hard anodized AL7075 w/laser scale |
| SEAT CLAMP |
ID:40mm |
| TIRE/F |
Contact 18*1.5 58PSI 4/240 TPI wire reflex |
| TIRE/R |
Contact 18*1.5 58PSI 4/240 TPI wire reflex |
| TUBE |
18*1.5" FV |
| RIM TAPE |
Nylon Strip rim tape |
| RIM/F |
18*1.5" 24H w/CNC side wall |
| RIM/R |
18*1.5" 36H w/CNC side wall |
| SPOKE |
2.0mm 14G stainless, silver |
| HUB/F |
24H old:100mm silver,sealed bearing, alloy axle,black A:109mm |
| HUB/R |
FH-F700 9speed QR type 36H old:135mm, QR:168mm |

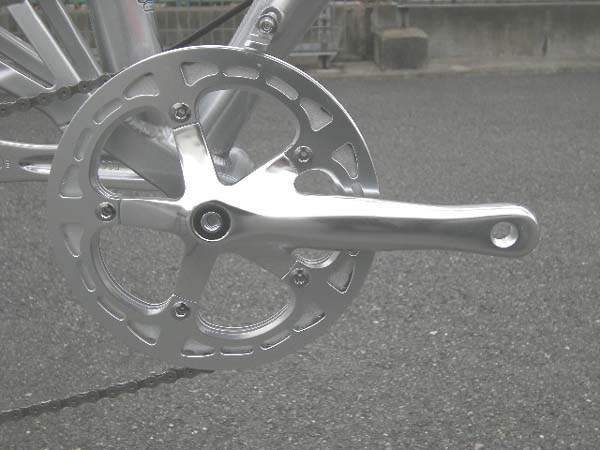

| CHAIN WHEEL |
Alloy 6061 3t CNC 47T chainring SB silver, w/alloy 170mm crank set Polished silver, w/double alloy chain cover polished silver |
| CHAIN COVER |
NIL |
| CHAIN |
108L super narrow chain for 9speed |
| FREEWHEEL |
Shimano Capreo 9speed 9-26T |

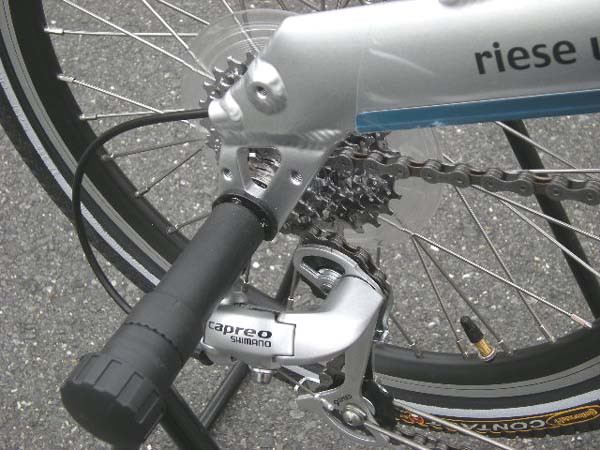

| DERAILLEUR/R |
RD-F700-SGS 9speed direct attachment |

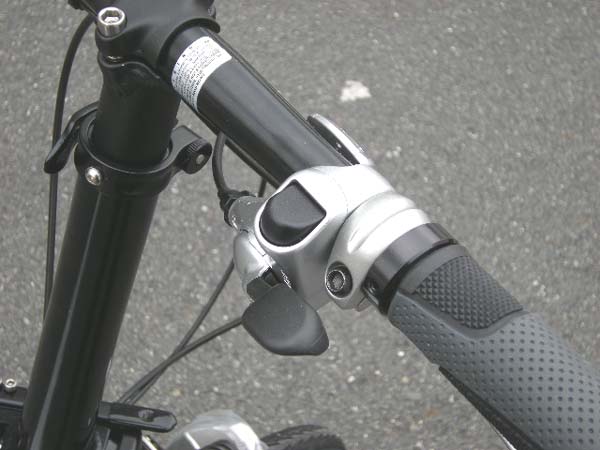

| SHIFTER/R |
SL-F700 right 9-speed 2050mm inner |
| SHIFTER CABLES |
Outer casing OT-41SP sealed 1200mm/580mm, 6X 6mm cap |

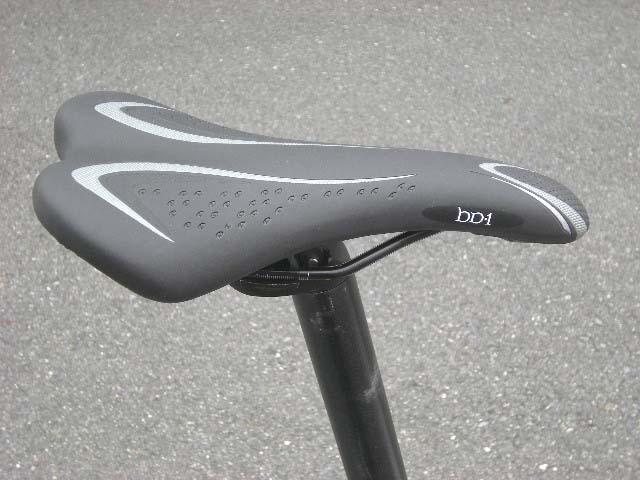

| SADDLE |
WEM99 black w/o stitching, black bumper steel black w/scale rails, w/o clamp, w/2009 bd-1 logo white |
| PEDAL |
Barrel polished alloy body, ED black alloy cage, CNC machined Cro-mo axle |

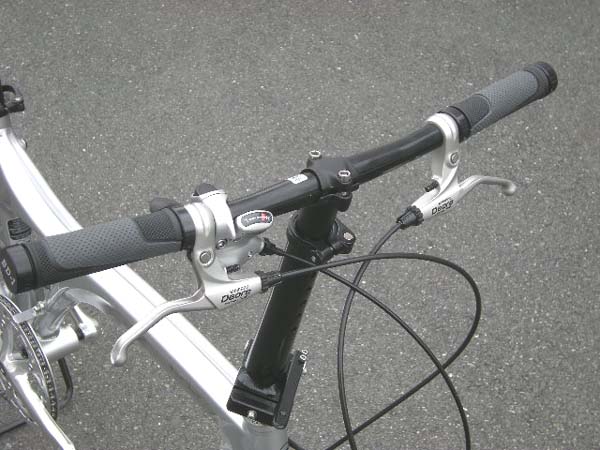

| HANDLE BAR |
520mm |

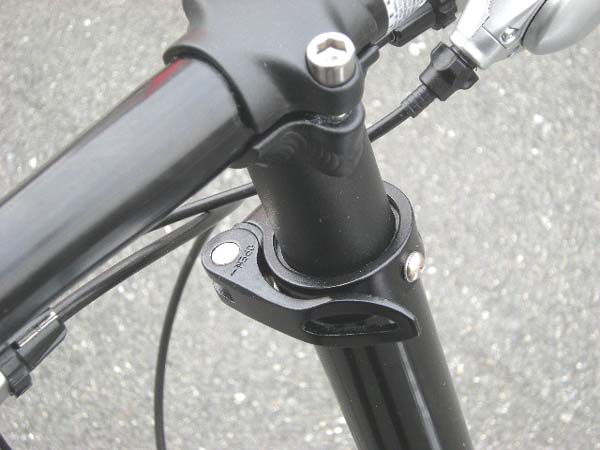

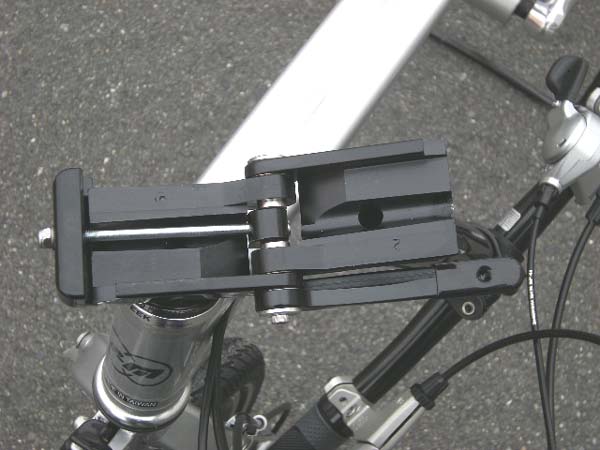

| STEM |
Folding adjustable index stem w/new hinge, 25degree |
| GRIP |
PP Filber black, Kraton black/Gel gray(P432C) 130mm, w/laser BD-1 logo |
| BRAKE/F |
V-Brake, BR-M530-S, Deore Y-type(Thin spacer:inside)W/S70T shoe(STD), 16.0mm fixing bolts, w/Tektro #875.1 lead pipe |

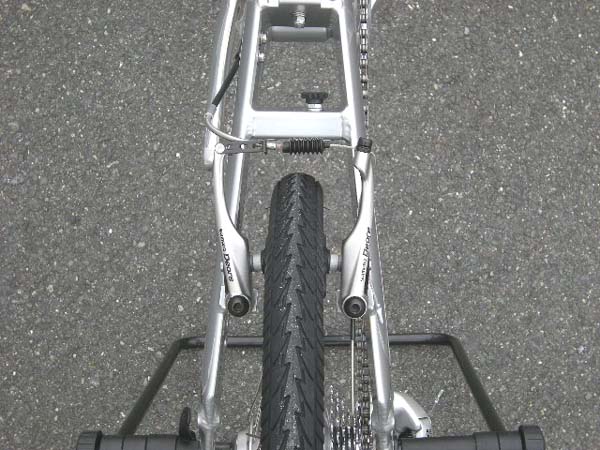

| BRAKE/R |
V-Brake, BR-M530-S, Deore Y-type(Thin spacer:inside)W/S70T shoe(STD), 16mm fixing bolts, w/CC-196A 90degree lead pipe |
| BRAKE LEVER/R |
Brake lever BL-M511-S , Deore right for V-brake, M530 color&logo |
| BRAKE LEVER/L |
Brake lever BL-M511-S , Deore left for V-brake, M530 color&logo |
| BRAKE CABLE |
Brake cable Shimano T-type DIA:1.6×5.0mm, stainless inner wire 1400×1600mm |
| REF.&BRACKET |
Rear reflectorRR-160-BTR w/B10 bracket |
| LIGHT/F |
White LED light, 3 white LEDS, double functions, w/25.4 bracket on handlebar, w/o battery |
| LIGHT/R |
All sight rear safety light, 3LEDs, 4Modes, w/o battery |
| BELL |
Alloy dome with one piece plastic base 22.2mm |
| BRACKET |
Adjustable bracket for rear light |
| SPOKE PROTECTOR |
w/LS-402 spoke protector |
