2006年 LOUISGARNEAU（ルイガノ）ロードレーサー
在庫、販売価格はお問い合わせ下さい。
ROAD REACER
仕様
| LGS-RSS | LGS-RAT | LGS-RHC | |
| FRAME | LG SONIX MONOCOQUE CARBON | EASTON ULTRA LITE/CARBON SEAT STAY & CHAIN STAY | ELITE / CARBON MONO STAY |
| FRONT FORK | OVAL CONCEPTS R900 | LG CARBON BLADES | LG CARBON BLADES |
| HEADSET | FSA ORBIT C INTEGRAL | FSA ORBIT IS INTEGRAL | FSA ORBIT IS INTEGRAL |
| HANDLE BAR | OVAL CONCEPTS R950 CARBON (400/450mm 420/490,520mm) | OVAL CONCEPTS R500 (400/510mm 420/530,550mm) | OVAL CONCEPTS R300 (400/510mm 420/530,550mm) |
| HANDLE STEM | OVAL CONCEPTS R700 84-DEG5(100/450mm 110/490mm 120/520mm) | OVAL CONCEPTS R500 84-DEG (100/510mm 110/530mm 120/550mm) | OVAL CONCEPTS R300 73-DEG (100/510mm 110/530mm 120/550mm) |
| BRAKE | SHIMANO DURA-ACE | SHIMANO ULTEGRA | SHIMANO 105 |
| BRAKE LEVER | SHIMANO DURA-ACE | SHIMANO ULTEGRA | SHIMANO 105 |
| FRONT DERAILLEUR | SHIMANO DURA-ACE | SHIMANO ULTEGRA | SHIMANO 105 |
| REAR DERAILLEUR | SHIMANO DURA-ACE | SHIMANO ULTEGRA | SHIMANO 105 |
| SHIFT LEVER | SHIMANO DURA-ACE | SHIMANO ULTEGRA | SHIMANO 105 |
| BOTTOM BRACKET | SHIMANO DURA-ACE W/CRANK SHELL：68mm | SHIMANO ULTEGRA W/CRANK SHELL：68mm | SHIMANO 105 W/CRANK SHELL：F68mm |
| CRANKSET | SHIMANO DURA-ACE 53/39T (170mm) | SHIMANO ULTEGRA 53/39T (170mm) | SHIMANO 105 50/39T (170mm) |
| FREE WHEEL | SHIMANO DURA-ACE 11-23T 10 SPEED | SHIMANO ULTEGRA 11-23T 10 SPEED | SHIMANO 105 11-23T 10 SPEED |
| HUB | WH-7801-SL COMPLETE WHEEL | SHIMANO WH-R600 COMPLETE WHEEL | SHIMANO R560 COMPLETE WHEEL |
| RIM | WH-7801-SL COMPLETE WHEEL | SHIMANO WH-R600 COMPLETE WHEEL | SHIMANO R560 COMPLETE WHEEL |
| TIRE | PANARACER EXTREAM VALIANT 700 × 23C | PANARACER EXTREAM VALIANT 700 ?~ 23C | PANARACER STRADIUS ELITE 700 ?~ 23C |
| SADDLE | SELLE ITALIA SLR CARBON C64 | SELLE ITALIA SIGNO GENUIN GEL | LG SPORTS |
| SEAT POST | OVAL CONCEPTS R700 (280mm) DIAMETER：31.6mm | OVAL CONCEPTS R500 (280mm) DIAMETER?F27.2mm | LG ALLOY (250mm) †DIAMETER?F27.2mm |
| PEDAL | NIL | NIL | NIL |
| SIZE | 450mm, 490mm, 520mm (C-T) | 510mm, 530mm, 550mm (C-T) | 510mm, 530mm, 550mm (C-T) |
| COLOR | LG WHITE | LG WHITE | LG WHITE, BLACK |
| WEIGHT | 7.2kg (520mm) | 8.0kg (530mm) | 8.3kg (530mm) |
仕様

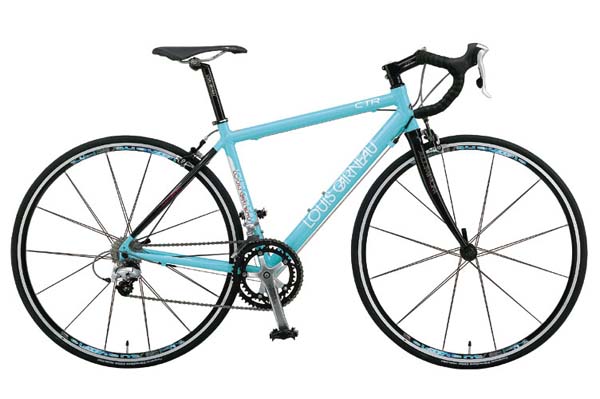

| LGS-CTR | LGS-MER | |
| FRAME | LG 7005 DB ALUMINUM | LG 7005 PG ALUMUNUM |
| FRONT FORK | LG ALLOY | LG CR-MO |
| HEADSET | ALLOY INTEGRAL | STEEL INTERNAL |
| HANDLE BAR | LG ALLOY (400/S 420/M,L) | LG ALLOY (420mm), CLIP ON BAR, ARM REST |
| HANDLE STEM | LG ALLOY †(80/S 100/M 120/L) | LG ALLOY (100/490mm 115/520mm) |
| BRAKE | TEKTRO RX40 | TEKTRO 521 |
| BRAKE LEVER | SHIMANO TIAGRA | SHIMANO SORA |
| FRONT DERAILLEUR | SHIMANO TIAGRA | SHIMANO SORA |
| REAR DERAILLEUR | SHIMANO TIAGRA | SHIMANO SORA |
| SHIFT LEVER | SHIMANO TIAGRA | SHIMANO SORA |
| BOTTOM BRACKET | SHIMANO BB-ES30 SHELL：68mm AXLE：113mm | RPM SEALED BEARING SHELL：68mm AXLE：110.5mm |
| CRANKSET | SHIMANO TIAGRA 50/39T (170mm) | TRACER CURABI-101 52/42 (170mm) |
| FREE WHEEL | SHIMANO CS-HG50 12-25T 9 SPEED | SHIMANO CS-HG50 12-25T 8 SPEED |
| HUB | FORMULA XSR-5 COMPLETE WHEEL | FORMULA |
| RIM | FORMULA XSR-5 COMPLETE WHEEL | ALEX RPD15 32H |
| TIRE | PANARACER STRADIUS ELITE 700 ?~ 23C | 700 × 25C |
| SADDLE | LG SPORTS | LG TRI |
| SEAT POST | LG ALLOY (350mm) †DIAMETER?F27.2mm | LG ALLOY (350mm) DIAMETER：27.2mm |
| PEDAL | WELLGO ALLOY | WELLGO ALLOY |
| SIZE | S(420mm), M(460mm), L(500mm) (C-T) | 490mm, 520mm (C-T) |
| COLOR | LG WHITE, GRAY, LITE BLUE | METAL GRAY |
| WEIGHT | 9.7kg (M) | 12.2kg (520mm) |
ご注文、ご質問に便利な注文フォームをご用意しました。
