2007年 Jamis Cross Country RANGER SX（ジェイミス　マウンテンバイク）

2007年 Jamis Cross Country RANGER SX
（ジェイミス　クロスカントリー、レンジャー）

HARD TAILモデル（ダート＆ストリート＆街乗りバイク）

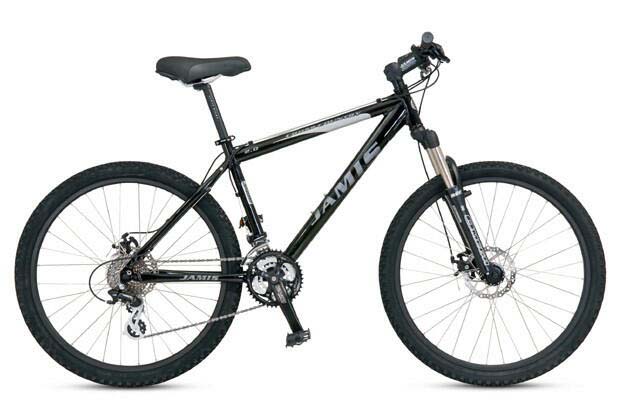

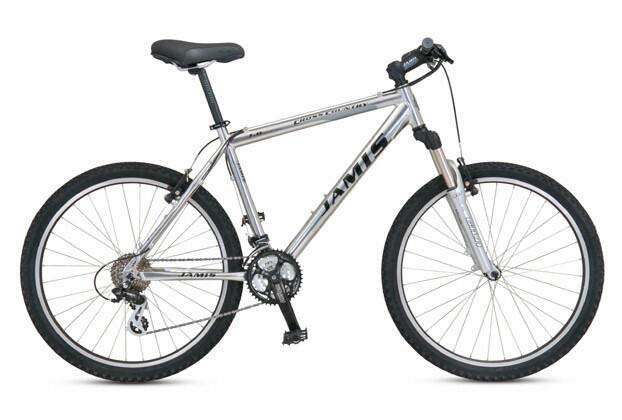

Cross Country 2.0 定価￥60,000	Cross Country 1.0 定価￥50,000	RANGER SX 1.0 定価￥36,800

廉価版のマウンテンバイク

Jamisが作れば安い価格帯のものでも決して手を抜きません。GIANTやルイガノにも決して内容で引けを取る事はありません。Cross Country 2.0はこの価格にしてワイヤー式ディスクブレーキ仕様です。Vブレーキ仕様ならCross Country 1.0が良いでしょう。
もちろん最廉価のRANGER SXも3万円台とは思えない内容です。

仕様表

	Cross Country 2.0	Cross Country 1.0	RANGER SX 1.0
FRAME	6061 triple gauge aluminum main tubes and S-bend stays, gussetted down tube, replaceable derailleur hanger	6061 triple gauge aluminum main tubes and S-bend stays, gussetted down tube, replaceable derailleur hanger	Enduro frame design, 7005 aluminum tubes, tapered/ovalized top tube, down tube & stays, replaceable derailleur hanger
FORK	RST Omega T7, coil/MCU, magnesium legs, external preload adjustor, 100mm travel	RST Gila T7, coil/MCU, external preload adjustor, 100mm travel	SR M2000 coil spring suspension, alloy crown, 63mm travel
HEADSET	Tange TG-4 threadless, 1 1/8"	Tange TG-4 threadless, 1 1/8"	VP threadless, sealed, 1 1/8"
WHEELSET	Weinmann ZAC19 double wall/eyeletted rims, 32H, with Formula alloy disc hubs (F) 100mm (R) 135mm, sealed with QR, 14g stainless steel spokes	Weinmann ZAC19 double wall rims, 32H, with Formula alloy hubs (F) 100mm (R) 135mm, sealed with QR, 14g stainless steel spokes	Alloy, 26 x 1.50" 36H rims, with heavy-duty ATB hubs (F)100mm (R)135mm, QR front & rear, 14g nickel-plated spokes
TIRES	CST Racing knobbie, 26" x 1.95", wire bead	CST Racing knobbie, 26" x 1.95", wire bead	CST ATB, 26 x 1.95", blackwall
DERAILLEURS	Shimano Acera rear, SR XCN-202 31.8mm top pull front	Shimano Acera rear, SR XCN-202 31.8mm top pull front	Shimano TX50 rear, Shimano TZ30 31.8mm top swing/top pull front
SHIFTERS	Shimano Acera ST-EF50 EZ-Fire Plus, 24-speed	Shimano Acera ST-EF50 EZ-Fire Plus, 24-speed	Shimano ST-EF50 EZ-Fire Plus 24-speed
CHAIN	KMC HG50	KMC HG40	KMC Z51
FREEWHEEL	Shimano HG-40, 8-speed, 11-32	Shimano HG-40, 8-speed, 11-32	Indexed 7-speed freewheel, 13-28
CRANKSET	Shimano M341, 42/32/22, 170mm	Shimano M341, 42/32/22, 170mm(12-17"),175mm (19")	SR XCC-150PB, alloy crank arms, 42/34/24 rings, 170mm
BOTTOM BRACKET	Sealed cartridge, TH-7420, 68 x 113	Sealed cartridge, TH-7420, 68 x 113	VP, sealed, bolt type, 3P axle, 68 x 124.5mm
PEDALS	ATB platform, hi-impact resin cage & body, with toe clips	ATB platform, hi-impact resin cage & body, with toe clips	ATB platform, hi-impact resin, toe clip attachable
BRAKESET	Tektro IO cable-actuated disc brakes, 6" wavy rotors, with Shimano Acera levers	Tektro forged alloy direct pull brakes with Shimano Acera levers	Alloy linear pull type with Shimano alloy levers
HANDLEBAR	Jamis riser, 6D sweep x 13mm rise x 620mm wide	Jamis riser, 6D sweep x 13mm rise x 620mm wide	Jamis riser, 6D sweep x 13mm rise x 620mm wide
STEM	Jamis alloy threadless, 10D rise, 75mm (14"), †100mm (17"), and 120mm (19") extensions	Jamis alloy threadless, 10D rise, 75mm (12-14"), 100mm (17"), and 120mm (19") extensions	Jamis alloy threadless, 10D rise, 60mm (12-14"), 90mm (17") extensions
GRIPS	Kraton for trigger-shift	Kraton for trigger-shift	Kraton for trigger-shift
SEATPOST	Jamis alloy micro-adjust, 27.2 x 300mm, with alloy QR clamp	Jamis alloy micro-adjust, 27.2 x 300mm, with alloy QR clamp	Jamis alloy micro-adjust, 27.2 x 300mm, with alloy QR clamp
SADDLE	Jamis ATB with SL top, memory foam, steel rails, front and rear guards	Jamis ATB with SL top, memory foam, steel rails, front and rear guards	Jamis ATB with SL top, steel rails, front and rear guards
SIZES	14",17", 19"	12", 14",17", 19"	12", 14", 17"
COLORS	Ano Black, Sunset Red	Ball Burnished, Midnight Blue	Ano Grey , Monaco Blue
WEIGHT	14.6kg	14.4kg	14.7kg
