2007年 Jamis DAKAR XAM
（ジェイミス ザム）
サイズ、スペック、販売価格、納期等はメールにてお問い合わせ下さい
| DAKAR XAM/XLTシリーズ （フルサスペンション オールマウンテン/フリーライド） |
|||||||
 |
 |
 |
 |
||||

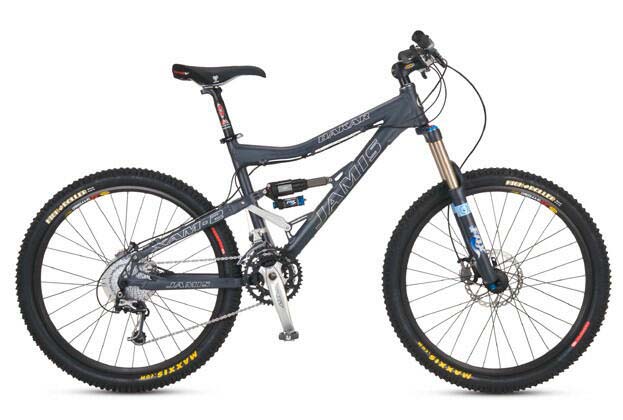

| DAKAR XAM 2.0 定価￥420,000 |

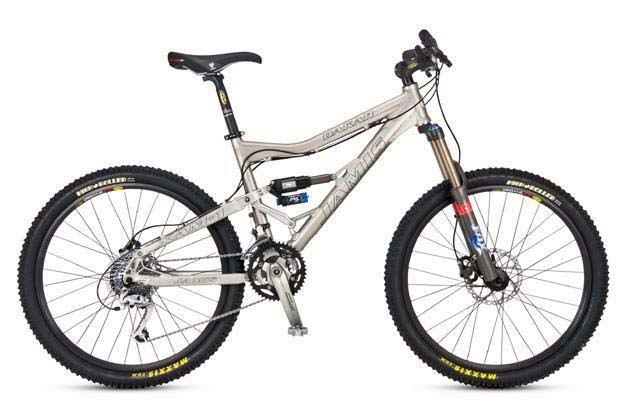

DAKAR XAM 1.0 定価￥299,000 |

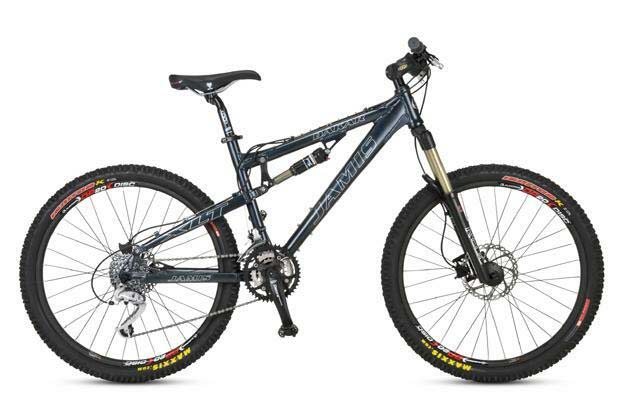

DAKAR XLT 定価￥199,000 |

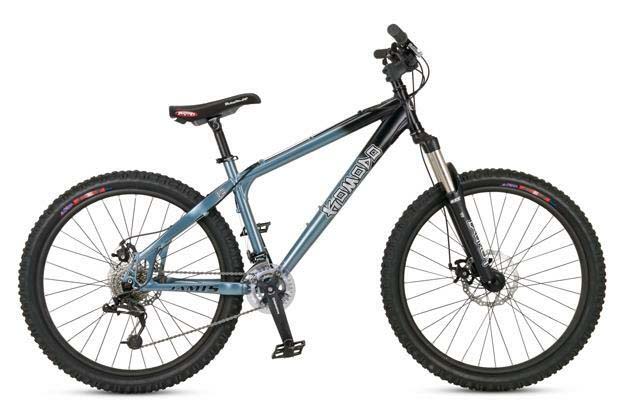

KOMODO 1.0 定価￥84,000 |
||||
オールマウンテン/フリーライドバイク
| 下りを走るならこのシリーズ。XAMは2007年の新モデルでXLTよりもより長いリアストロークでより下りを速く走るために開発されました。従来のXLTもコントロールしやすい形状はそのままにあります。 KOMODOはリヂッドででよりフリーライトやストリートを楽しんでもらうためのバイクです。 |
仕様表
| DAKAR XAM 2.0 | DAKAR XAM 1.0 | |
| FRAME | Kinesium alloy main triangle and 7005 rear stays, cartridge bearing pivots, fully-active XAM linkage design, 130mm travel Fox DHX Air 5.0 shock, replaceable derailleur hanger |
Kinesium alloy main triangle and 7005 rear stays, cartridge bearing pivots, fully-active XAM linkage design, 130mm travel Fox DHX Air 3.0 shock, replaceable derailleur hanger |
| FORK | Fox 32 Talas-RLC, air spring, rebound & compression adjustors with lockout, 100 - 140mm adjustable travel |
Fox 32 Float-RL, air spring, rebound adjustors with lockout, 140mm travel |
| HEADSET | FSA Orbit Z, internal cup type, 1 1/8" | FSA Orbit Z, internal cup type, 1 1/8" |
| WHEELSET | Mavic XM317 eyeletted disc rims, 32H, with Shimano Deore M525 disc hubs (F) 100mm (R) 135mm, WTB 14g stainless steel spokes |
Mavic XM317 eyeletted disc rims, 32H, with Shimano M475 disc hubs (F) 100mm (R) 135mm, WTB 14g stainless steel spokes |
| TIRES | Maxxis High Roller, 26 x 2.35", folding | Maxxis High Roller, 26 x 2.35", 60tpi |
| DERAILLEURS | Shimano XTR (hi-normal) rear, Deore XT 31.8mm top pull front |
Shimano Deore XT (hi-normal) rear, Deore 31. 8mm top pull front |
| SHIFTERS | Shimano Deore XT Rapidfire Plus-SL, 27-speed | Shimano Deore LX Rapidfire Plus-SL, 27-speed |
| CHAIN | Shimano HG-93 | Shimano CN-HG-73 |
| FREEWHEEL | SRAM Powerglide 970, 9-speed, 11-34 | SRAM Powerglide 950, 9-speed, 11-34 |
| CRANKSET | Shimano Deore XT, 44/32/22, 170mm | Shimano Deore LX, 44/32/22, 170mm |
| BOTTOM BRACKET |
Shimano Deore XT integrated | Shimano Deore LX integrated |
| PEDALS | Crank Brothers Candy C clipless | Crank Brothers Smarty clipless |
| BRAKESET | Hayes El Camino hydraulic disc brakes with V7 front & V6 rear rotors, Hayes levers |
Hayes HFX-9 hydraulic disc brakes with V7 front & V6 rear rotors, Hayes levers |
| HANDLEBAR | Easton EA70 31.8 MonkeyBar, 8D sweep x mid- rise x 635 wide |
Easton EA50 31.8 MonkeyBar, 8D sweep x mid- rise x 635 wide |
| STEM | Easton Vice All Mountain 31.8, 6D rise x 65mm extensions |
Easton Vice All Mountain 31.8, 6D rise x 65mm extensions |
| GRIPS | WTB MotoTec clamp-on, DNA compound | WTB MotoTec clamp-on, DNA compound |
| SEATPOST | Easton Havoc micro-adjust, 30.9mm x 350mm | Easton Vice micro-adjust, 30.9mm x 350mm |
| SADDLE | WTB Pure V Race FR, SL top & sides, kevlar corners, cromo rails |
WTB Pure V Race, SL top & sides, ABR corners, steel rails |
| SIZES | 15", 17" | 15", 17" |
| COLORS | Nickel | Sandstone |
| WEIGHT | 14.2kg | 14.7kg |
仕様表
| DAKAR XLT | KOMODO 1.0 | |
| FRAME | 7005 aluminum all tubes, cartridge bearing pivots, fully-active multi-link design, 125mm travel Fox Float R rear shock, replaceable derailleur hanger |
7005 triple gauge aluminum main tubes, double gusseted main tubes, heavy duty braced stays, replaceable derailleur hanger |
| FORK | Manitou Relic Comp, Fluid Flow damping, 30mm alloy stanchions, external preload adjustor, 100mm travel |
RST Launch T7, coil/MCU, external preload adjustor, 130mm travel |
| HEADSET | WTB Race, internal cup type, 1 1/8" | TH Hammer, threadless, with cromo lower cups, 1 1/8" |
| WHEELSET | WTB Speed Disc rims eyeleted 32H with Formula front and rear disc hubs (F) 100mm (R) 135mm, 14g black stainless steel spokes |
Weinmann Taurus 2000 rims, eyeletted, 32H with Formula front and rear disc hubs (F) 100mm (R) 135mm, 14g black stainless steel spokes |
| TIRES | Maxxis Ignitor, 26 x 2.35", 60tpi | Kenda Kinetic, 26" x 2.35", wire bead |
| DERAILLEURS | Shimano Deore XT (high-normal) rear, Deore top pull front |
SRAM SX-4 rear, SR XCN-202 31.8mm top pull front |
| SHIFTERS | Shimano Deore Rapidfire-SL, 27-speed | SRAM SX-4 Uni-lever trigger-shift, 16-speed |
| CHAIN | SHIMANO CN-HG73 | Shimano CN-HG-73 |
| FREEWHEEL | SRAM Powerglide 950, 9-speed, 11-32 | Shimano HG40-8, 11-32 |
| CRANKSET | Shimano Deore, 44/32/22, 170mm | Alpha Drive Bash, 32/22, with polycarbonate rock guard, 170mm |
| BOTTOM BRACKET |
Shimano ES30, sealed cartridge, 68 x 113 | TH Powerdrive, sealed cartridge, 68 x 113 |
| PEDALS | Wellgo WPD-823 clipless | Flatbed alloy platform type with pedal spikes |
| BRAKESET | Hayes Sole hydraulic disc brakes, V7 front & V6 rear rotors, Hayes levers |
Tektro Io cable-actuated disc brakes, 7" wavy rotors, with Tektro ML-330 levers |
| HANDLEBAR | Easton EA30 31.8 MonkeyBar, 6D x low rise x 635mm wide |
Alloy 6061 T-6 Riser Bar, 31.8 diameter, 65mm rise x 680mm wide |
| STEM | Easton Vice All Mountain, 12D x 65mm extensions | Alloy 4-bolt bar clamp threadless, 10D rise x 60mm |
| GRIPS | WTB Weirwolf, dual DNA compound | WTB Weirwolf, dual DNA compound |
| SEATPOST | Easton EA30 micro-adjust, 350mm x 27.2mm with alloy clamp and QR seatpin |
SDG I-Beam micro-adjust, 350mm x 30.9mm with alloy clamp and QR seatpin |
| SADDLE | WTB Laser V Comp with SL top and steel rails | SDG BelAir ST, SL top & sides, I-Beam rails |
| SIZES | 13", 15", 17" | 14", 16.5" |
| COLORS | Coal | Steel Blue/Ano Black |
| WEIGHT | 15.1kg | 15.3kg |
