2007年 Jamis DAKAR XCR XC
（ジェイミス ダカール XCR XC）
サイズ、スペック、販売価格、納期等はメールにてお問い合わせ下さい
| DAKARシリーズ（フルサスペンション クロスカントリー） | |||||||
 |
 |
 |
2005 DAKAR XLT 定価￥208,950が 40％OFFの特価中 |
||||
| 2005 DAKAR XLT 1.0 定価￥261,450が 40％OFFの特価中 |
|||||||

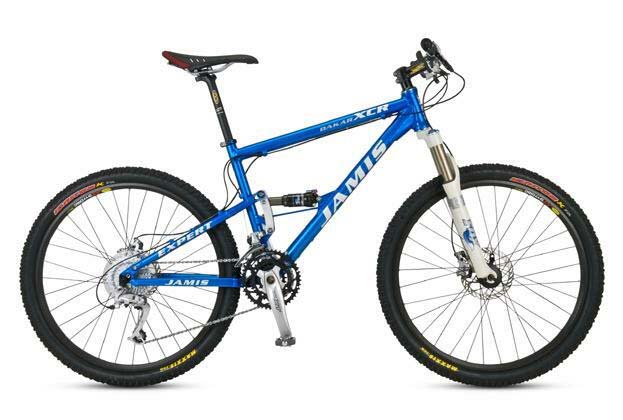

| DAKAR XCR Expert 定価￥330,000 |

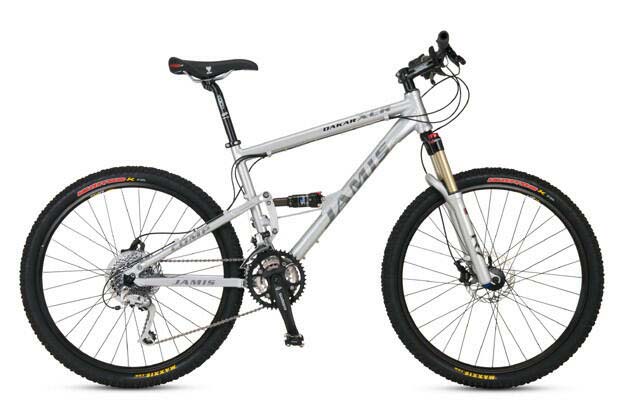

DAKAR XCR Comp 定価￥239,000 |

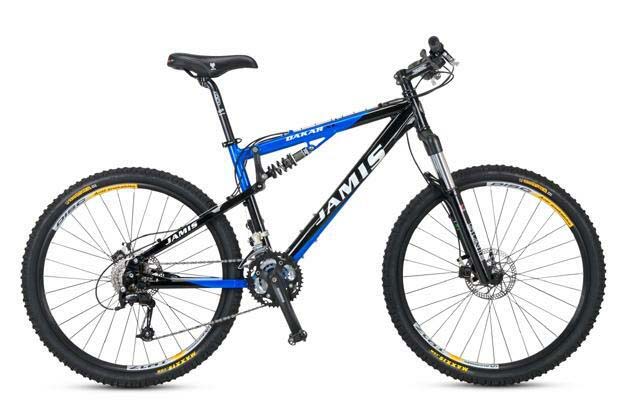

DAKAR XC 定価￥128,000 |
|||||
フルサスペンション クロスカントリーバイク
| こちらは従来のXCのDAKARの新モデルです。ストロークは100mmで従来と同じですがよりロスが少なくなる構造になり軽量化も果たしています。もっと速く走りたい方なら当然XCRを選ぶと良いでしょう。 もちろん従来のタイプは一番安価なDAKAR XCで残っていますのでクロスカントリーにもフルサスペンションを手軽に楽しんでいただく事が出来ます。 |
仕様表
| DAKAR XCR Expert | DAKAR XCR Comp | DAKAR XC | |
| FRAME | Kinesium alloy main triangle, weight-optimized 7005 seat & chainstays, cartridge bearing pivots, XCR linkage design, 100mm travel, Fox FLOAT RP2 shock, replaceable derailleur hanger |
Kinesium alloy main triangle, weight-optimized 7005 seat & chainstays, cartridge bearing pivots, XCR linkage design, 100mm travel, Fox FLOAT R shock, replaceable derailleur hanger |
7005 aluminum all tubes with gusseted down tube and box-section stays,fully-active multi-link design with 90mm rear travel, Fox Vanilla coil-over shock, replaceable derailleur hanger |
| FORK | Fox 32F-100RL, air spring, rebound & compression adjustors, 100mm travel |
Manitou R7 Super, air spring with TPC lockout, rebound adjustor, alloy steerer upgrade, 100mm travel |
Manitou Slate Comp, Fluid Flow damping, 30mm stanchions, external preload adjustor, 100mm travel |
| HEADSET | FSA Orbit Z, internal cup type, 1 1/8" | FSA Orbit Z, internal cup type, 1 1/8" | Aheadset, STS-2K, 1 1/8" |
| WHEELSET | Mavic XM317 eyeletted disc rims, 32H, with Shimano Deore M525 disc hubs (F) 100mm (R) 135mm, WTB 14g stainless steel spokes |
Mavic XM117 disc rims, 32H, with Shimano M475 disc hubs (F) 100mm (R) 135mm, WTB 14g stainless steel spokes |
WTB Speed Disc rims, eyeletted, 32H, with Shimano M65 Centerlock disc hubs (F) 100mm (R) 135mm, 14g black stainless steel spokes |
| TIRES | Maxxis Ignitor, 26 x 2.1", folding | Maxxis Ignitor, 26 x 2.1", 60tpi | Maxxis Mobster, 26 x 2.1", 60tpi |
| DERAILLEURS | Shimano Deore XT (high-normal) rear, Deore XT 28. 6mm top pull front |
Shimano Deore XT (high-normal) rear, Deore 31. 8mm top pull front |
Shimano Deore rear, Alivio 31.8mm top pull front |
| SHIFTERS | Shimano Deore XT Rapidfire Plus-SL, 27-speed | Shimano Deore LX Rapidfire Plus-SL, 27-speed | Shimano Alivio RapidFire-SL, 24-speed |
| CHAIN | Shimano HG-93 | SHIMANO CN-HG-73 | KMC HG-40 |
| FREEWHEEL | SRAM Powerglide 970, 9-speed, 11-34 | SRAM Powerglide 950, 9-speed, 11-34 | Shimano HG-40, 8-speed, 11-32 |
| CRANKSET | Shimano Deore XT, 44/32/22, 170mm | Shimano Deore, Octalink, 170mm (13-17"), 175mm (19") |
Shimano M341, Octalink 42/32/22, 170mm (12-17"), 175mm (19") |
| BOTTOM BRACKET |
Shimano Deore XT integrated | Shimano ES30, sealed cartridge, 68 x 113 | Shimano ES25, sealed cartridge, 68 x 113 |
| PEDALS | Crank Brothers Candy C clipless | Shimano M505 clipless | ATB platform, steel cage/resin body, with toe clips |
| BRAKESET | Avid Juicy 5 hydraulic disc brakes with Avid Juicy levers |
Avid Juicy 3 hydraulic disc brakes with Avid Juicy levers |
Shimano M415 cable-actuated disc brakes, 6" Centerlock rotors, with Tektro ML-330 levers |
| HANDLEBAR | Easton EA50 MonkeyBar, 8D sweep x low rise x 635mm wide |
Easton EA30 MonkeyBar, 8D x low rise x 635mm wide |
Easton EA30 MonkeyBar, 8D x low rise x 635mm wide |
| STEM | Easton EA50, 6D x 90mm extensions | Easton EA30, 10D x 90mm (13-17"), 105mm (19") extensions |
Easton EA30, 6D x 90mm (13-17""), †105mm (19") extensions |
| GRIPS | WTB MotoTec clamp-on, DNA compound | WTB MotoTec clamp-on | WTB Trail, dual compound |
| SEATPOST | Easton EA50 microadjust, 350mm x 27.2mm with alloy clamp and cromo seatpin |
Easton EA30 micro-adjust, 350mm x 27.2mm with alloy clamp and QR seatpin |
Easton EA30 micro-adjust, 350mm x 27.2mm with alloy clamp and QR seatpin |
| SADDLE | Fizik Gobi with WingFlex carbon reinforced shell, Microtex top and cromo rails |
WTB Rocket V Comp with SL top and steel rails | WTB Speed V Sport SE with SL top and steel rails |
| SIZES | 15", 17" | 13", 15", 17",19" | 13", 15", 17", 19" |
| COLORS | Monterey Blue | Machine Silver | Le Mans Blue/Black, Titanium/Black |
| WEIGHT | 12.5kg | 13.0kg | 15.2kg |
当店はジェイミス公認店です。
 |
実は当店は「日本初」の 「JAMIS スペシャルオーソライズドディーラー」に認定されています。 JAMISは当店でお買い求めいただくと安心です。 左は認定証です。 |
|
