2006 KONA MTB DIRT JUMP
（コナ マウンテンバイクダートジャンプ シリーズ）
在庫分のみ期間限定特価中！
(定価から30％OFF!!)
ご注文、ご質問に便利な注文フォームをご用意しました。
スペック
ご注文、ご質問に便利な注文フォームをご用意しました。
スペック

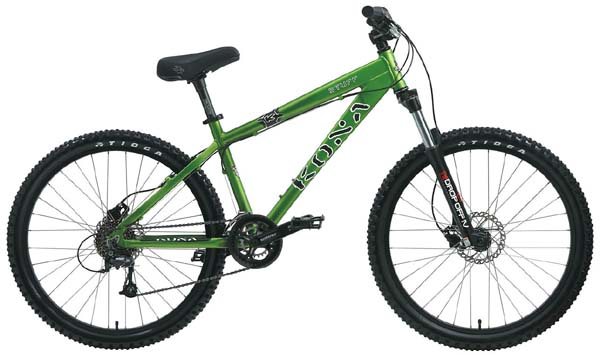

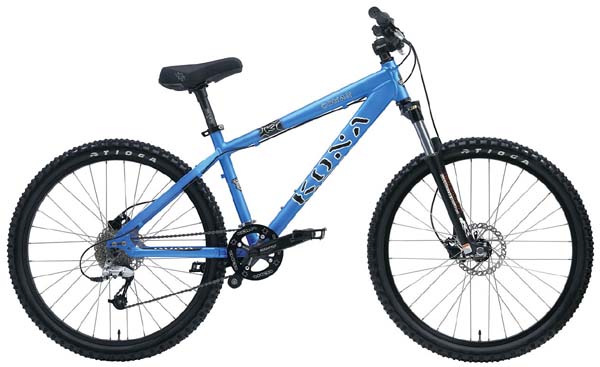

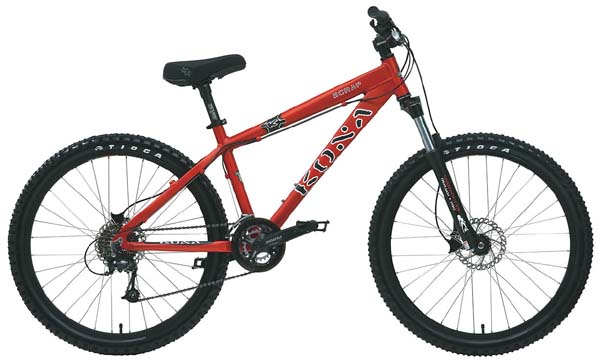

| SHERD | SCRAP | STUFF | COWAN | COWAN DS Frame | |
| Frame sizes | 13"(XS), 15"(S), 15.5"(M) | 13"(XS), 15"(S), 15.5"(M) | 13"(XS), 15"(S), 15.5"(M) | 13"(XS), 15"(S), 15.5"(M ) | 15"(S),15.5"(M) |

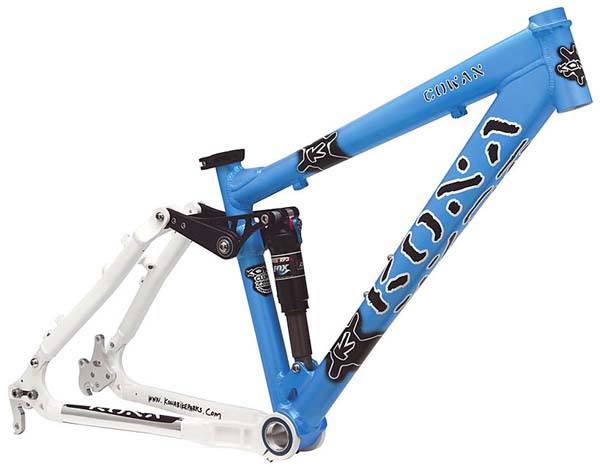

| Frame tubing | Kona Clump 7005 Aluminum | Kona Clump 7005 Aluminum | Kona Clump 7005 Aluminum | Kona Clump 7005 Aluminum | Kona Clump 7005 Aluminum,4-Bar Dual Suspension 4"Rear Travel |
| Fork | Marzocchi Dirt Jam Comp 100mm | Marzocchi Dirt Jam Pro 100mm | Marzocchi Drop-Off 4 100mm | Marzocchi Dirt Jumper 3 110mm | |
| Headset | TH w/Big Nut | TH w/Big Nut | FSA w/Big Nut | TH w/Big Nut | |
| Crankarms | TruVativ Ruktion-Howitzer | TruVativ Hussefelt-Howitzer | TruVativ Hussefelt-Howitzer | TruVativ Hussefelt-Howitzer | |
| Chainrings | TV Rockguard /36/24 | TV Rockguard /36/24 | TV Rockguard /36/24 | Chainrings 36T | |
| B/B | TruVativ Ruktion-Howitzer | TruVativ Hussefelt-Howitzer | TruVativ Hussefelt-Howitzer | TruVativ Hussefelt-Howitzer | |
| Pedals | Kona Jackshit | Kona Jackshit | Kona Jackshit | Kona Jackshit | |
| Chain | Shimano CN-IG31 | Shimano CN-IG31 | Shimano IG-31 | Shimano CN-HG53 | |
| Freewheel | Shimano CS-HG30 11-32 8 speed | CS-HG30 11-32 8 speed | Shimano CS-HG30 11-32 8 speed | Shimano HG 50 11-32 9 speed | |
| F/D | Shimano Alivio | Shimano Alivio | Shimano Alivio | Cowan/Jackshit Chainguide | |
| R/D | Shimano Altus | Shimano Alivio | Shimano Alivio | Shimano Deore LX | |
| Shifters | Shimano Alivio | Shimano Alivio | Shimano Alivio | Shimano Deore (right side only) | |
| Handlebar | TruVativ Hussefelt OS Riser | TruVativ Hussefelt OS Riser | TruVativ Hussefelt Riser | TruVativ Hussefelt OS Riser | |
| Stem | TruVativ Hussefelt OS | TruVativ Hussefelt OS | TruVativ Hussefelt | TruVativ Hussefelt OS | |
| Grips | Cowan Signature | Cowan Signature | Cowan Signature | Cowan Signature | |
| Brakes | Hayes MX2 mechanical | Hayes Sole | Hayes Hydraulic HFX-9 XC | Hayes Hydraulic HFX-9 XC | |
| Brake Levers | Avid FR-5 | Hayes Sole | Hayes Hydraulic HFX-9 XC | Hayes Hydraulic HFX-9 XC | |
| Front hub | KK Disc | KK Disc | KK Disc (20mm Thu-Axle) | KK Disc (20mm Thu-Axle) | |
| Rear hub | Shimano FH-M475 disc | Shimano FH-M475 disc | Shimano FH-M475 disc | Shimano FH-M475 disc | |
| Spokes | Stainless 14g | Stainless 14g | Stainless 14g fr & rr | Stainless 14g | |
| Tires | Tioga Blue Dragon 26 x 2.3 front, 2.1 R | Tioga Blue Dragon 26 x 2.3 front, 2.1 | Tioga Blue Dragon 26 x 2.3 front, 2.1 | Tioga Blue Dragon 26 x 2.3 front, 2.1 | |
| Rims | Alex DM-24 | Alex DM-24 | Sun Ditch Witch | Sun Ditch Witch | |
| Saddle | Kona DJ | Kona DJ | Kona DJ | Kona DJ | |
| Seatpost | Kona Double Clamp | TruVativ XR Double Clamp | TruVativ XR Double Clamp | TruVativ XR Double Clamp | |
| Seat clamp | Kona QR | Kona QR | Kona QR | Kona QR | |
| Color | Grey | Orange | Green | Blue |
フレームジオメトリー
SHERED/SCRAP/STUFF/COWAN
| Frame size | 13"(XS) | 15"(S) | 15.5"(M) |
| Head angle | 69° | 69° | 69° |
| Seat angle | 72° | 72° | 72° |
| Top tube | 21.5” | 22” | 23.2” |
| Chain stay | 16.7" | 16.7" | 16.7" |
| Head tube | 4.7" | 4.7" | 4.7" |
| BB height | 12.8" | 12.8" | 12.8" |
| Standover | 29.2" | 29.8" | 29.9" |
COWAN DS
| Frame size | 15"(S) | 15.5"(M) |
| Head angle | 70° | 70° |
| Seat angle | 74° | 74° |
| Top tube | 22” | 23” |
| Chain stay | 16.7" | 16.7" |
| Head tube | 4.7" | 4.7" |
| BB height | 12.2" | 12.2" |
| Standover | 29.6" | 29.8" |
ご注文、ご質問に便利な注文フォームをご用意しました。
当店はこのような状態で組立、調整、発送しています。
