2007 KONA MTB CROSS COUNTRY
（コナ マウンテンバイク クロスカントリーシリーズ）
ご注文、ご質問に便利な注文フォームをご用意しました。
スペック

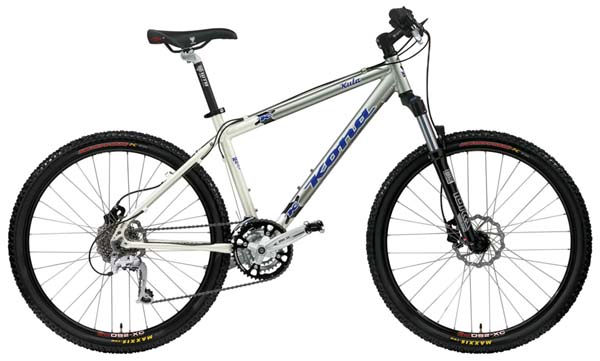

| KULA （クラ） |

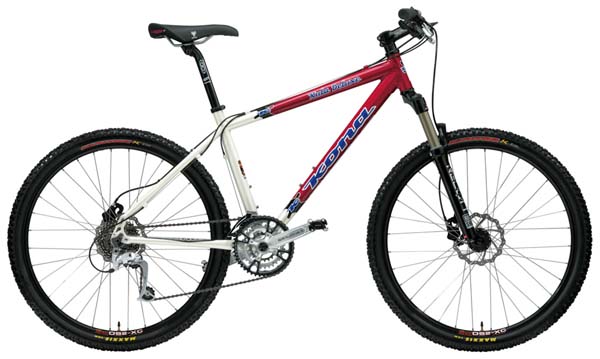

KULA DELUXE （クラデラックス） |

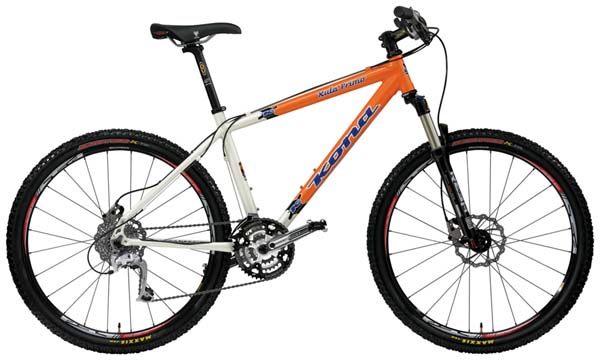

KULA PRIMO （クラプリモ） |

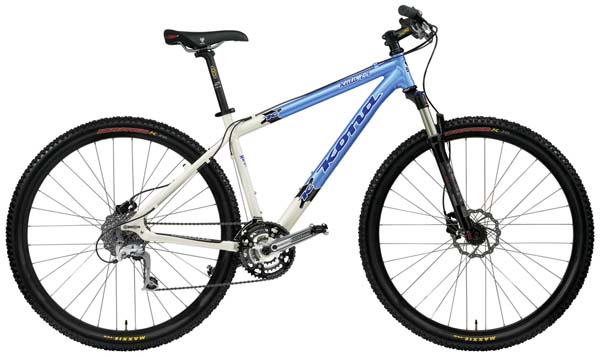

KULA 2.9 （クラ2.9） |
|
| Frame sizes | 16", 17", 18" | 16", 17", 18" | 16", 17", 18" | 16", 18" |
| Frame tubing | Kona 7005 Butted Aluminum | Easton Ultralite | Easton Ultralite | Kona Scandium Race Butted |
| Fork | RockShox TORA 318 AIR 100mm travel Braze-on fittings 2 bottles, fender, Disc brake tabs |
RockShox Recon 351 Solo Air 100mm travel Braze-on fittings 2 bottles, fender, Disc brake tabs |
Rockshox REBA TEAM 100mm travel Braze-on fittings 2 bottles, rear disc mount |
RockShox REBA SL 29er 85mm travel Braze-on fittings 2 bottles, rear disc mount |
| Headset | TH | TH | FSA ORBIT DL | FSA ORBIT DL |
| Crankarms | RaceFace RIDE X-Type | RaceFace Evolve XC X-Type | Race Face Deus XC X-Type | Race Face Deus XC X-Type |
| Chainrings | 44/32/22 | 44/32/22 | 44/32/22 | 44/32/22 |
| B/B | RaceFace RIDE X-Type | RaceFace Evolve XC X-Type | Race Face Deus XC X-Type | Race Face Deus XC X-Type |
| Pedals | Shimano PD-M505 Clipless | Shimano PD-M505 Clipless | Shimano PD-M505 Clipless | Shimano PD-M505 Clipless |
| Chain | Shimano CN-HG53 | Shimano CN-HG53 | Shimano CN-HG73 | Shimano CN-HG73 |
| Freewheel | Shimano Deore (11-32t, 9speed) | Shimano Deore (11-32t, 9speed) | Shimano Deore LX (11-32t, 9speed) | Shimano DEORE LX (11-32t, 9speed) |
| F/D | Shimano Deore | Shimano Deore LX | Shimano Deore XT | Shimano Deore XT |
| R/D | Shimano Deore XT | Shimano Deore XT | Shimano Deore XT | Shimano Deore XT |
| Shifters | Shimano Deore | Shimano Deore LX | Shimano Deore XT | Shimano Deore XT |
| Handlebar | WTB CXC Riser | Easton EA30 OS Ri | Easton EA50 OS Riser | Easton EA50 OS Riser |
| Stem | WTB CXC | Easton EA30 OS | Easton EA50 OS | Easton EA50 OS |
| Grips | Kona RACE LIGHT | Kona RACE LIGHT | Kona RACE LIGHT | Kona RACE LIGHT |
| Brakes | HAYES HFX-9 XC W6 w/2-finger Lever | HAYES HFX-9 XC W6 w/2-finger Lever | HAYES HFX-9 XC Carbon W6 | HAYES HFX-9 XC |
| Brake Levers | HAYES HFX-9 XC W6 w/2-finger Lever | HAYES HFX-9 XC W6 w/2-finger Lever | HAYES HFX-9 XC Carbon W6 | HAYES HFX-9 XC |
| Front hub | KK Disc | Shimano HB-525 Disc | FSA XC-300 Wheelset | Shimano HB-525 Disc |
| Rear hub | Shimano FH-M475 disc | Shimano HB-525 Disc | FSA XC-300 Wheelset | Shimano FH-525 Disc |
| Spokes | 15g front and 14g rear stainless DT | 15g front and 14g rear stainless DT | FSA XC-300 Wheelset | DT 14g front and rear stainless |
| Tires | Maxxis IGNITOR 26x2.1 | Maxxis IGNITOR 26x2.1 | Maxxis IGNITOR 26x2.1 | Maxxis Ignitor 29x2.1 |
| Rims | Sun DS2-XC | Sun DS2-XC | FSA XC-300 Wheelset | Sun CR-18 |
| Saddle | WTB Rocket V SPORT | WTB Rocket V Comp | WTB Rocket V Comp | WTB Rocket V Comp |
| Seatpost | WTB CXC | Easton EA30 | Easton EA50 | Easton EA50 |
| Seat clamp | Kona QR | Kona Clamp | Kona Clamp | Kona Clamp |
| Color | Silver/White | Wine Red/White | Orange/White | Lilac/White |
スペック

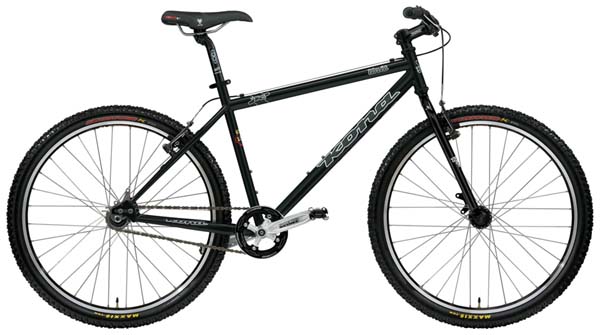

| Unit （ユニット） |

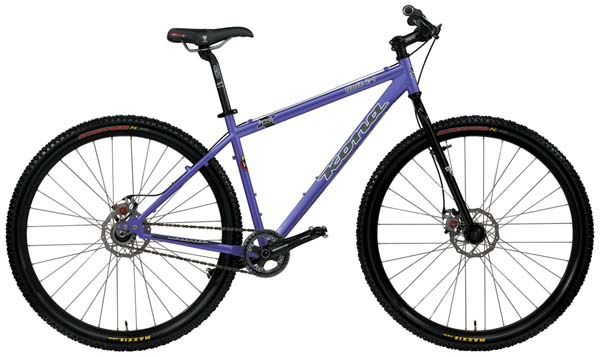

Unit 2.9 （ユニット2.9） |

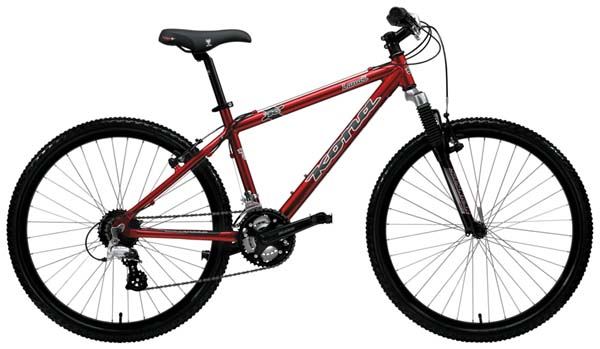

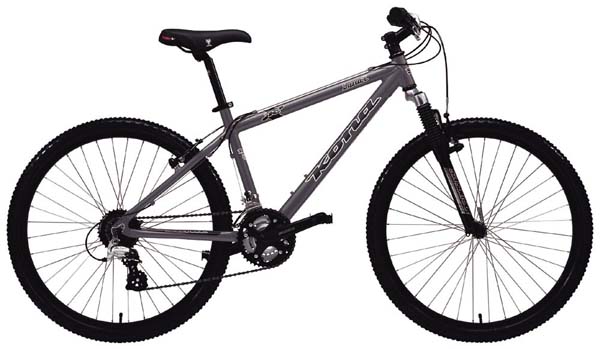

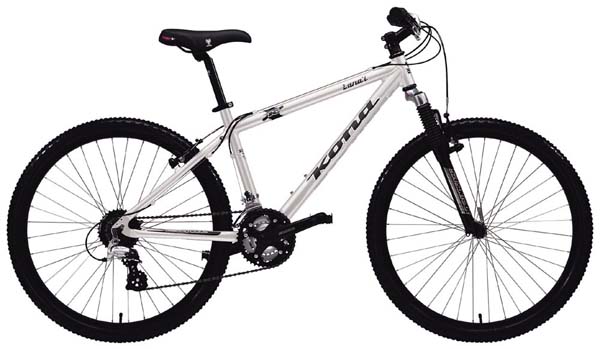

LANA'I （ラナイ） |

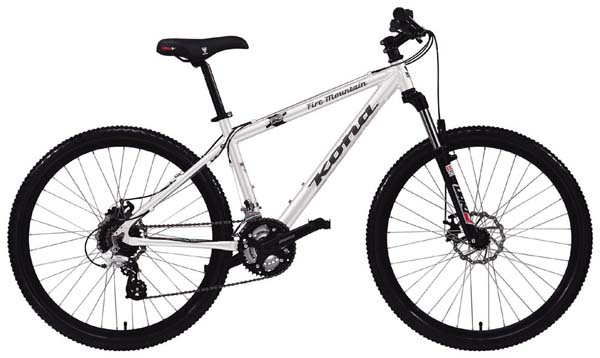

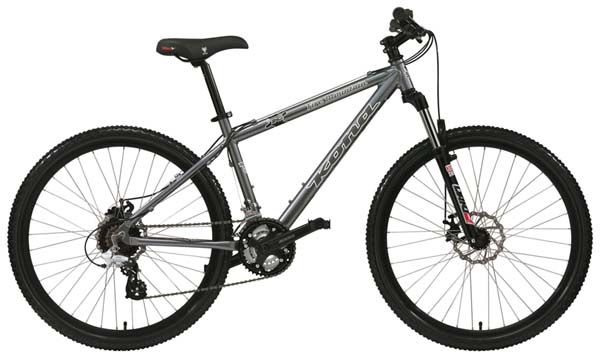

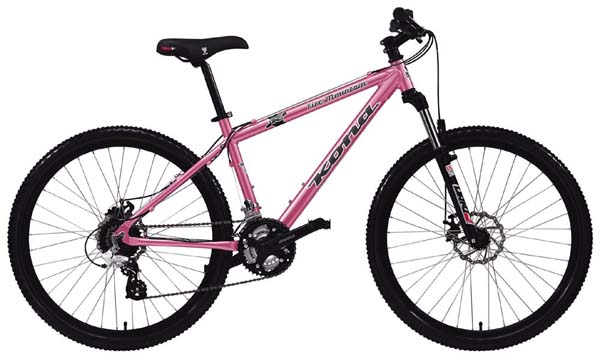

FIRE MOUNTAIN （ファイヤーマウンテン） |
|
| Frame sizes | 16",18" | 16", 18" | 14", 16", 18", 20" | 14", 16", 18", 20" |
| Frame tubing | Dedacciai COM Butted Cromoly | Dedacciai COM Butted Cromoly |
Kona 7005 Butted Aluminum | Kona 7005 Butted Aluminum |
| Fork | Kona P2 Disc Braze-on fittings 2 water bottles, fenders |
Kona P2 29er Disc Braze-on fittings 2 water bottles, fenders |
SunTour XCU 63mm Braze-on fittings 2 bottles, fender |
Rock Shocks Dart 1 100mm Braze-on fittings 2 bottles, fender , disc |
| Headset | TH | TH | TH | TH |
| Crankarms | RaceFace RIDE ISIS | FSA V-Drive MegaExo SS | Suntour CW-XCC150PB | Suntour CW-XCC150PB |
| Chainrings | 34T w/ rockguard | 32T w/ pc Rockguard | 42/34/24 | 42/34/24 |
| B/B | RaceFace SRX ISIS | FSA MegaExo | TH M-1 | TH M-1 |
| Pedals | Shimano PD-M505 Clipless | Shimano PD-M505 Clipless | Wellgo LU-C3 | Wellgo LU-C3 |
| Chain | KMC Z610 (3/32") | KMC Z610 (3/32") | Shimano IG-70 | Shimano IG-70 |
| Freewheel | Shimano 17T | Shimano 18T | SHIMANO HG 30 (11-32t, 8speed) | SHIMANO HG-30 (11-32t, 8speed) |
| F/D | N/A | N/A | Shimano Tourney | Shimano Tourney |
| R/D | N/A | N/A | Shimano Altus | Shimano Acera-x |
| Shifters | N/A | N/A | Shimano Rapidfire | Shimano Alivio |
| Handlebar | Easton EA30 OS Riser | Easton EA30 OS Riser | Kona Riser | Kona Riser |
| Stem | Easton EA30 OS | Easton EA30 OS | Kona Control | Kona Control |
| Grips | Kona LOG | Kona LOG | Kona Mooseknuckle | Kona Mooseknuckle |
| Brakes | Avid SD 5 | Avid BB7 | Tektro M530 | Hayes MX4 Mechanical |
| Brake Levers | Avid SD 5 | Avid FR-5 | Shimano Rapidfire | Avid FR-5 |
| Front hub | KK Disc | KK Disc | FORMULA | KK Disc |
| Rear hub | KK SS Disc | KK SS Disc | SHIMANO FH-RM30 | Shimano FH-M475 disc |
| Spokes | Stainless 15gq front 14g rear | 14g front and 14g rear stainless DT | Stainless 14g fr & rr | Stainless 14g |
| Tires | Maxxis IGNITOR 26x2.1 | Maxxis Ignitor 29x2.1 | CST Crusader 26x1.9 | CST Crusader 26x1.9 |
| Rims | Sun MACH 4 | Sun CR-18 | ALEX Z-1000 | ALEX ACE-18 |
| Saddle | WT B Laser V Comp | WTB Laser V Comp | WTB Speed V Sport SE | WTB Speed V Sport SE |
| Seatpost | Easton EA30 | Easton EA30 | Kona Thumb | Kona Thumb |
| Seat clamp | Kona Clamp | Kona Clamp | Kona QR | Kona QR |
| Color | Black | Purple | Dark Red | Grey |

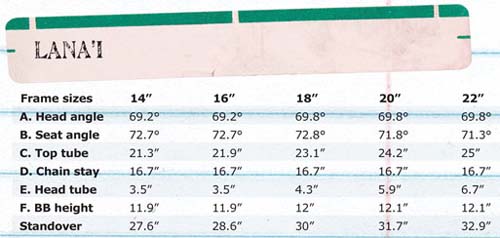

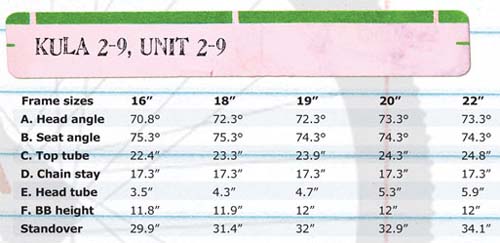

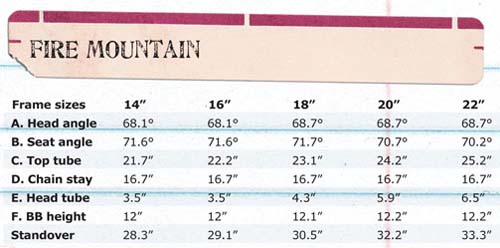

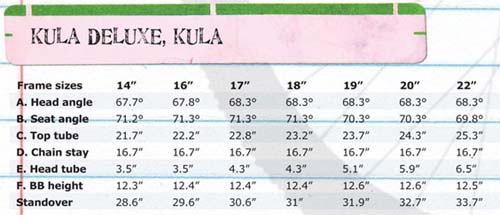

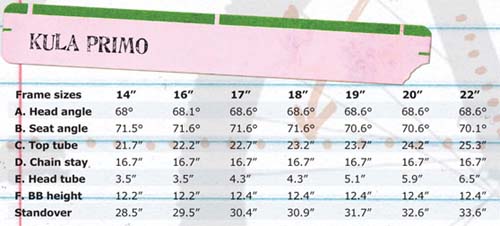

フレームジオメトリー
