2006 MARIN MTB mountain bike Steel（マリンクロモリマウンテンバイク）

2006 MARIN STEEL MTB
（マリンクロモリマウンテンバイク）

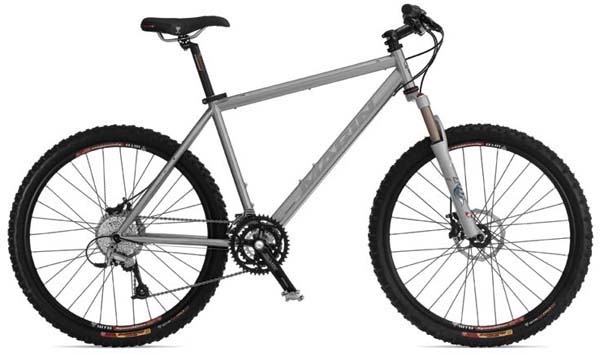

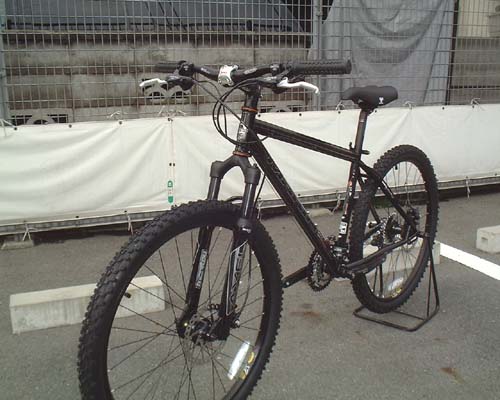

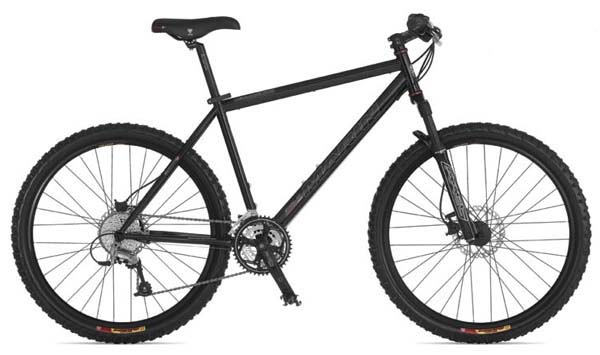

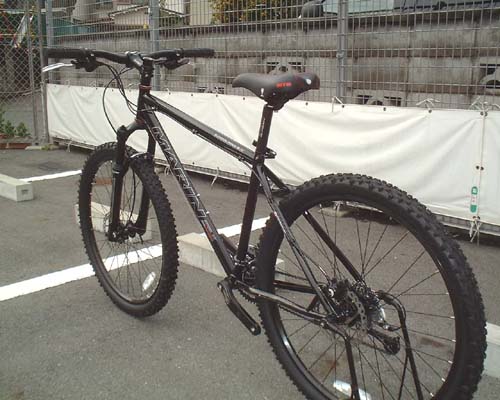

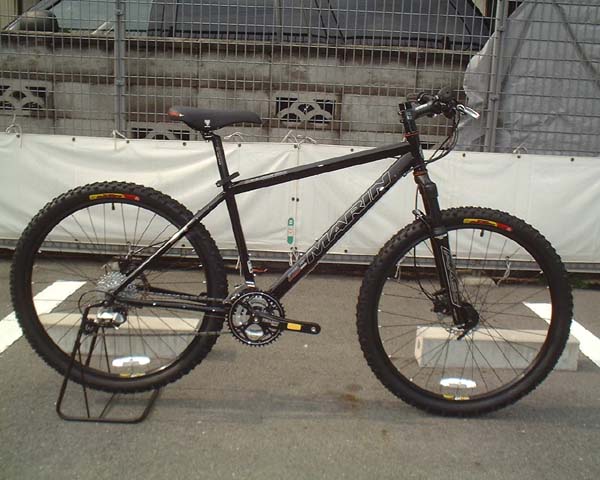

ELDRIDGE GRADE （エルドリッジグレード）定価￥139,650	ELDRIDGE GRADEの実車写真のサイズは15インチ	PINE MOUNTAIN FX （パインマウンテン）定価￥63,000 フレームのみ

ご注文、ご質問に便利な注文フォームをご用意しました。

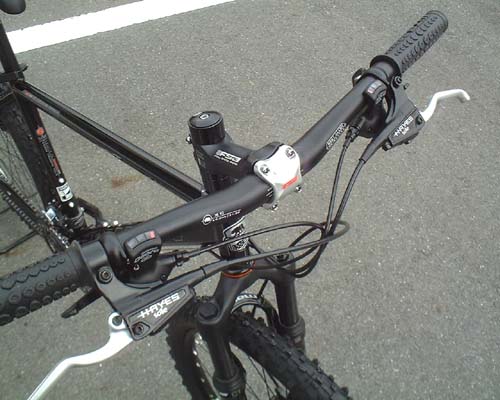

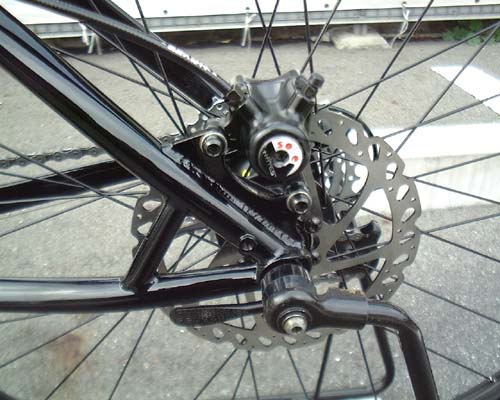

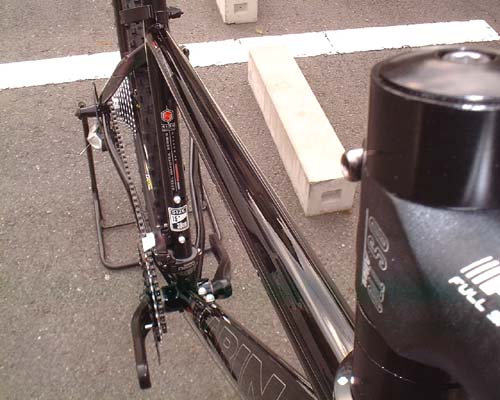

ELDRIDGE GRADE 各部のアップ

スペック

	ELDRIDGE GRADE	PINE MOUNTAIN FX
Frame	Full Double Butted Cromoly with Edge Shaped Tubing, Double Butted Anti-Flex Tri-Burner Seat and Chain Stays with Disc Brake Mounts	Columbus Zona Tubing with Mega Top and Down Tubes, Double Butted Anti-Flex Tri-Burner Seat and Chain Stays with Disc Brake Mounts
Front Fork	Manitou Axel Super Air, 80mm Travel, with FFD Damping, Rebound and Air Preload Adjustment
Derailleur Front	Shimano Deore
Derailleur Rear	Shimano XT
Shift Levers	Shimano Deore
Crankset	TruVativBlaze, 44/32/22with Power Spline
BottomBracket	TruVativ Power Spline Cartridge
Chain	Shimano HG53
Cassette	SRAM PG-950, Power Glide II 9 Speed 11-32
Brakes Rear	Hayes Sole Hydraulic Disc, with V6 Rotors
Brakes Front	Hayes Sole Hydraulic Disc, with V6 Rotors
BrakeLevers	Hayes Hydraulic Disc
Handlebar	Double Butted Alloy, 31.8mm, with25.4mm Rise
Grips	WTB Moto Grip
Headset	WTB Momentum Comp ST Threadless 1 1/8
Saddle	WTB Speed VATB, with Love Channel and Comfort Zone
Seatpost	FSASL-280, 6061Alloy
Stem	FSA OS170 Threadless with Alloy Face Plate, with 31.8mm Bar Clamp
Hub Rear	Shimano 32 Hole Disc
HubFront	Shimano 32 Hole Disc
Rims	Mavic XM 117 Disc, 32 Hole
Spokes	WTB 15 Gauge Black Stainless
Tires	WTB Moto Raptor, Comp, 26”x2.14"(49/52)
Pedals	RitcheyLogicMountainV4Clipless
StemSize	13 to 15.0=90mm, 17.0 =105mm,
Size	13-15-17	15-17-18
Weight

ジオメトリー
